UPA843TC-T1

Features: • Flat-lead 6-pin thin-type ultra super minimold package• 2 different built-in transistors (2SC5603, 2SC5600)• Low voltage operation Q1: Built-in high gain transistor fT = 13.5 GHz, ½S21e½2 = 10.0 dB @ VCE = 1 V, IC = 5 mA, f = 2 GHz Q2: Built-in low pha...

product image

UPA843TC-T1 Picture
See larger image
SeekIC No. : 004537918 Detail

UPA843TC-T1: Features: • Flat-lead 6-pin thin-type ultra super minimold package• 2 different built-in transistors (2SC5603, 2SC5600)• Low voltage operation Q1: Built-in high gain transistor f...

UPA843TC-T1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPA843TC-T1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Flat-lead 6-pin thin-type ultra super minimold package
• 2 different built-in transistors (2SC5603, 2SC5600)
• Low voltage operation
Q1: Built-in high gain transistor
fT = 13.5 GHz, ½S21e½2 = 10.0 dB @ VCE = 1 V, IC = 5 mA, f = 2 GHz
Q2: Built-in low phase distortion transistor suited for OSC operation
fT = 5.0 GHz, ½S21e½2 = 4.0 dB @ VCE = 1 V, IC = 5 mA, f = 2 GHz


Pinout

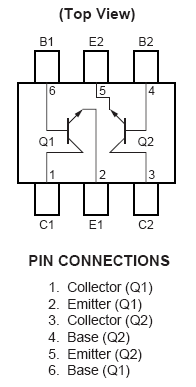

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit

Q1
Q2
Collector to Base Voltage
VEBO
15
9
V
Collector to Emitter Voltage
VEBO
6
5.5
V
Emitter to Base Voltage
VEBO
2
1.5
V
Collector Current
IC
35
100
mW
Total Power Dissipation
PTNote
200 in 1 element
230 in 2 elements
mW
Junction Temperature
Tj
150
°C
Storage Temperature
Tstg
-65 to +150
°C
