• Low noise
Q1 : NF = 1.5 dB TYP. @ f = 2 GHz, VCE = 3 V, IC = 3 mA
Q2 : NF = 1.4 dB TYP. @ f = 1 GHz, VCE = 3 V, IC = 7 mA
• High gain
Q1 : |S21e|² = 8.5 dB TYP. @ f = 2 GHz, VCE = 3 V, IC = 10 mA
Q2 : |S21e|² = 12.0 dB TYP. @ f = 1 GHz, VCE = 3 V, IC = 7 mA
• Flat-lead 6-pin thin-type ultra super minimold package
• Built-in 2 different transistors (2SC5010, 2SC5007)

Pinout

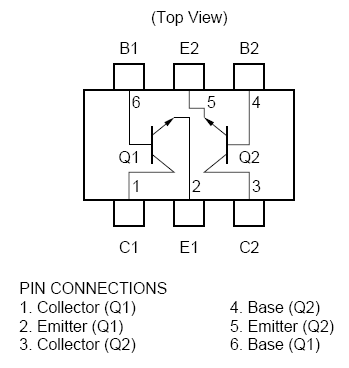

Connection Diagram

Specifications

Parameter	Symbol	Ratings		Unit
Parameter	Symbol	Q1	Q2	Unit
Collector to Base Voltage	V_EBO	9	20	V
Collector to Emitter Voltage	V_EBO	6	10	V
Emitter to Base Voltage	V_EBO	2	1.5	V
Collector Current	I_C	30	65	mW
Total Power Dissipation	P_T^Note	180 in 1 element	200 in 1 element	mW
Total Power Dissipation	P_T^Note	230 in 2 elements		mW
Junction Temperature	T_j	150	150	°C
Storage Temperature	T_stg	-65 to +150		°C

Description

The UPA840TC-T1 has built-in two different transistors (Q1 and Q2) for low noise amplification in the VHF band to UHF band.
