Product Details

Description

Features:

• Low noise: NF= 1.2 dB TYP.@ f = 1 GHz, VCE = 3 V, IC = 7 mA
• High gain: IS21el² = 9.0 dB TYP. @ f = 1 GHz, VCE = 3 V, IC = 7 mA
• Flat-lead 6-pin thin-type ultra super minimold package
• Built-in 2 transistors (2×2SC5006)

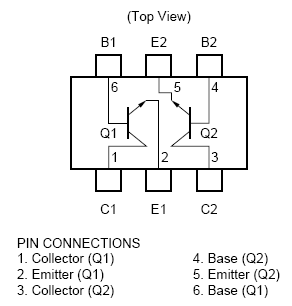

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Ratings	Unit
Collector to Base Voltage	V_EBO	20	V
Collector to Emitter Voltage	V_EBO	12	V
Emitter to Base Voltage	V_EBO	30	V
Collector Current	I_C	100	mW
Total Power Dissipation	P_T^Note	200 in 1 element 230 in 2 elements	mW
Junction Temperature	T_j	150	°C
Storage Temperature	T_stg	-65 to +150	°C

Description

The UPA821TC-T1 has built-in low-voltage two transistors which are designed for low-noise amplification in the VHF to UHF band.
