Product Details

Description

Features:

• Low voltage operation, low phase distortion
• Low noise: NF = 1.5 dB TYP. @ VCE = 3 V, IC = 7 mA, f = 2 GHz
NF = 1.7 dB TYP. @ VCE = 1 V, IC = 3 mA, f = 2 GHz
• Flat-lead 6-pin thin-type ultra super minimold package.
• Built-in 2 transistors (2 *2SC5195)

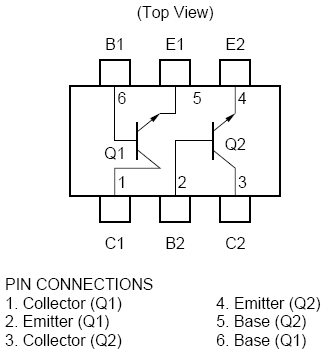

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Ratings	Unit
Collector to Base Voltage	V_EBO	9	V
Collector to Emitter Voltage	V_EBO	6	V
Emitter to Base Voltage	V_EBO	2	V
Collector Current	I_C	100	mW
Total Power Dissipation	P_T^Note	200 in 1 element	mW
Total Power Dissipation	P_T^Note	230 in 2 elements	mW
Junction Temperature	T_j	150	°C
Storage Temperature	T_stg	-65 to +150	°C
