UDA1384

Features: General· 2.7 V to 3.6 V power supply· 5 V tolerant digital inputs· 24-bit data path· Selectable control: via L3-bus or I2C-bus microcontroller interface· Supports sample frequency ranges for:· Audio ADC: fs = 16 kHz to 100 kHz· Voice ADC: fs = 7 kHz to 50 kHz· Audio DAC: fs = 16 kHz to 2...

product image

UDA1384 Picture
See larger image
SeekIC No. : 004536262 Detail

UDA1384: Features: General· 2.7 V to 3.6 V power supply· 5 V tolerant digital inputs· 24-bit data path· Selectable control: via L3-bus or I2C-bus microcontroller interface· Supports sample frequency ranges f...

UDA1384 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UDA1384
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

General
· 2.7 V to 3.6 V power supply
· 5 V tolerant digital inputs
· 24-bit data path
· Selectable control: via L3-bus or I2C-bus microcontroller interface
· Supports sample frequency ranges for:
· Audio ADC: fs = 16 kHz to 100 kHz
· Voice ADC: fs = 7 kHz to 50 kHz
· Audio DAC: fs = 16 kHz to 200 kHz
· Separate power control for ADC and DAC
· ADC plus integrated high-pass filter to cancel DC offset
· Integrated digital filter plus DAC
· Slave mode only applications
· Easy application
 Multiple format data interface
· Audio interface supports standard I2S-bus, MSB-justified, LSB-justified and two multichannel formats
· Voice interface supports I2S-bus and mono channel formats
 Digital sound processing
· Control via L3-bus or I2C-bus:
· Channel independent digital logarithmic volume
· Digital de-emphasis for fs = 32 kHz, 44.1 kHz, 48 kHz or 96 kHz
· Soft or quick mute
· Output signal polarity control
 Advanced audio configuration
· Inputs:
   · 4 single-ended audio inputs (2×stereo) with programmable gain amplifiers
   · 1 single-ended voice input
· Outputs:
   ·6 differential audio outputs (3 ×stereo)
· DSD mode to support stereo DSD playback
· High linearity, wide dynamic range and low distortion
· DAC digital filter with selectable sharp or soft roll-off


Application

· Excellently suitable for multichannel home audio-video application

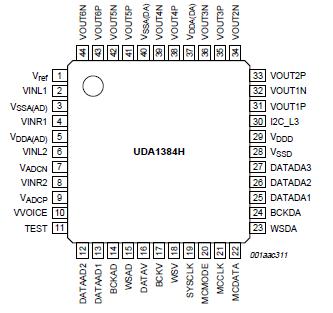

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX.
UNIT
VDD supply voltage                            [1] - 4.0
V
Txtal(max) maximum crystal
temperature		 - 150
Tstg storage temperature -65 +125
Tamb ambient temperature -20 +85
Vesd electrostatic discharge voltage HBM                    [2] -2000 +2000
V
MM                      [2] -200 +200
V

[1] All supply connections must be made to the same power supply.
[2] ESD behavior is tested in accordance with JEDEC II standard:
    a) Human Body Model (HBM); equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.
   b) Machine Model (MM); equivalent to discharging a 200 pF capacitor through a 0.75 H series inductor.



Description

The UDA1384 is a single-chip consisting of 4 plus 1 Analog-to-Digital Converters (ADC) and 6 Digital-to-Analog Converters (DAC) with signal processing features employing bitstream conversion techniques. The multichannel configuration makes the device eminently suitable for use in digital audio equipment which incorporates surround feature.

The UDA1384 supports conventional 2 channels per line data transfer conformable to the I2S-bus format with word lengths of up to 24 bits, the MSB-justified format with word lengths of up to 24 bits and the LSB-justified format with word lengths of 16 bits, 20 bits and 24 bits, as well as 4 channels to 6 channels per line transfer mode. The device also supports a combination of the MSB-justified output format and the LSB-justified input format. The UDA1384 has special sound processing features in the Direct Stream Digital (DSD) playback mode, de-emphasis, volume and mute which can be controlled via the L3-bus or I2C-bus interface.
