UDA1342TS

Features: General· 2.7 to 3.6 V power supply· 5 V tolerant digital inputs· High pin compatibility with UDA1341TS· 24 bits data path· Selectable control via L3-bus interface, I2C-bus interface or static pin control; choice of 2 device addresses in L3-bus and I2C-bus mode· Supports sample frequencie...

product image

UDA1342TS Picture
See larger image
SeekIC No. : 004536248 Detail

UDA1342TS: Features: General· 2.7 to 3.6 V power supply· 5 V tolerant digital inputs· High pin compatibility with UDA1341TS· 24 bits data path· Selectable control via L3-bus interface, I2C-bus interface or sta...

UDA1342TS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UDA1342TS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

General
· 2.7 to 3.6 V power supply
· 5 V tolerant digital inputs
· High pin compatibility with UDA1341TS
· 24 bits data path
· Selectable control via L3-bus interface, I2C-bus interface or static pin control; choice of 2 device addresses in L3-bus and I2C-bus mode
· Supports sample frequencies from 16 to 110 kHz
· Separate power control for ADC and DAC
· ADC and Programmable Gain Amplifiers (PGA) plus integrated high-pass filter to cancel DC offset
· Integrated digital filter plus DAC
· Digital silence detection
· No analog post filtering required for DAC
· Slave mode only applications
· Easy application.
Multiple format data interface
· I2S-bus, MSB-justified and LSB-justified format compatible
· 1fs to 4fs input and 1fs output format data rate. DAC digital sound processing
· Separate digital logarithmic volume control for left and right channels in L3-bus mode or I2C-bus mode
· Digital tone control, bass boost and treble in L3-bus mode or I2C-bus mode
· Digital de-emphasis for sample frequencies of 32, 44.1, 48 and 96 kHz in L3-bus mode or I2C-bus mode
· Soft or quick mute in L3-bus mode or I2C-bus mode
· Output signal polarity control in L3-bus mode or I2C-bus mode
· Digital mixer for ADC output signal and digital serial input signal.
    Advanced audio configuration
· 4 channel (2× stereo) single-ended inputs with programmable gain amplifiers and 2 channel (1 ×stereo) single-ended outputs configuration
· Output signal polarity control in L3-bus mode or I2C-bus mode
· High linearity, wide dynamic range, low distortion
· Double differential input configuration for enhanced ADC sound quality.


Application

· Eminently suitable for MiniDisc (MD) home and portable applications.

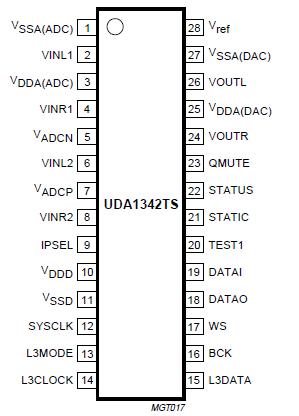

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX.
UNIT
VDD supply voltage note 1 - 4
V
Txtal(max) crystal temperature - 150
Tstg storage temperature -65 +125
Tamb ambient temperature -40 +85
Vesd electrostatic discharge voltage note 2 -1100 +1100
V
note 3 -250 +250
V
Ilu(prot) latch-up protection current Tamb = 125 °C; VDD = 3.6 V - 200
mA
Isc(DAC) short-circuit current of DAC Tamb = 0 °C; VDD = 3 V; note 4
output short-circuited to VSSA(DAC)
output short-circuited to VDDA(DAC)		 -
-		 450
325
mA
mA

Notes
1. All supply connections must be made to the same power supply.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 k series resistor.
3. Equivalent to discharging a 200 pF capacitor via a 0.75 H series inductor.
4. DAC operation after short-circuiting cannot be warranted.


Description

The UDA1342TS is a single-chip 4 channel analog-to-digital converter and 2 channel digital-to-analog converter with signal processing features employing bitstream conversion techniques. The low power  onsumption and low voltage requirements make the device eminently suitable for use in low-voltage low-power portable digital audio equipment which incorporates recording and playback functions.

The UDA1342TS supports the I2S-bus data format with word lengths of up to 24 bits, the MSB-justified data format with word lengths of up to 24 bits and the LSB-justified serial data format with word lengths of 16, 20 and 24 bits. The device also supports a combination of the MSB-justified output format and the LSB-justified input format.

The UDA1342TS has special sound processing features in the playback mode such as de-emphasis, volume, mute, bass boost and treble, which can be controlled by the microcontroller via the L3-bus or I2C-bus interface.
