U6808B

Features: • Digital Self-supervising Watchdog with Hysteresis• One 250-mA Output Driver for Relay• Enable Output Open Collector 8 mA• Over/Undervoltage Detection• ENABLE and RELAY Outputs Protected Against Standard Transients and 40 V Load Dump• ESD Protection A...

product image

U6808B Picture
See larger image
SeekIC No. : 004535066 Detail

U6808B: Features: • Digital Self-supervising Watchdog with Hysteresis• One 250-mA Output Driver for Relay• Enable Output Open Collector 8 mA• Over/Undervoltage Detection• ENABL...

U6808B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U6808B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Digital Self-supervising Watchdog with Hysteresis
• One 250-mA Output Driver for Relay
• Enable Output Open Collector 8 mA
• Over/Undervoltage Detection
• ENABLE and RELAY Outputs Protected Against Standard Transients and 40 V Load Dump
• ESD Protection According to MIL-STD-883 D Test Method 3015.7
   Human Body Model: ±2 kV (100 pF, 1.5 k)
   Machine Model: ±200 V (200 pF, 0 )


Pinout

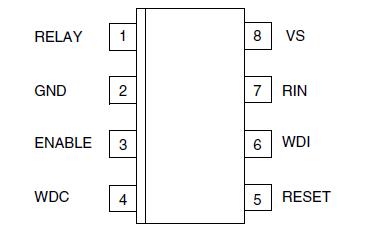

Connection Diagram


Specifications

Parameters
Symbol
Value
Unit
Supply voltage range
VS
-0.2to+16
V
Power dissipation
VS = 5 V, Tamb = -40
VS = 5 V, Tamb = +125
Ptot
Ptot
250
150
mW
Thermal resistance
Rthja
160
K/W
Junction temperature
Tj
150
Ambient temperature range
Tamb
-40to+125
Storage temperature range
Tstg
-55to+155



Description

The U6808B is designed to support the fail-safe function of a safety critical system (e.g., ABS). U6808B includes a relay driver, a watchdog controlled by an external R/C-network and a reset circuit initiated by an over and undervoltage condition of the 5-V supply providing a low-level reset signal.
