Features:

 Six input comparators with Schmitt-trigger characteristic
  Input clamping current capability to ±10 mA
  Integrated protection cells (EMC, ESD, RF) dedicated to all input stages
  Low voltage reset with hysteresis
  ESD protection to human body model:
 2000 V (C = 100 pF, R = 1.5 k)
  Output stages:
   Short circuit protected with diode
   Load-dump protected @ 1 k No crosstalk on adjacent channels
   Clamping current @ 2 mA
   Jump start possible


Pinout

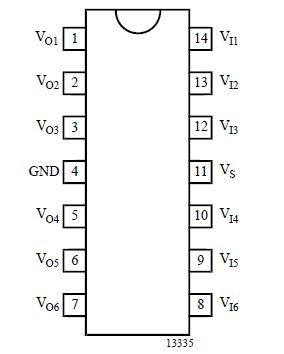

Connection Diagram


Specifications

Parameters Symbol Value Unit
Supply voltage VS 7.0 V
Ambient temperature range * Tamb 40 to +125 °C
Storage temperature range Tstg 50 to +150 °C
Maximum junction temperature Tj +150 °C



Description

The hexdriver IC U6807B includes 6 non-inverted and current limited output stages with an open collector.

Each output of U6807B can sink 20 mA, parallel output operation is possible. The digital inputs have Schmitt-trigger function with pull-up current sources to 5 V.
