Product Details

Description



Features:

 High linearity of the complete circuit
3-stage gain controlled wideband amplifier
Internal AGC loops
AGC time constants and thresholds adjustable
Mixer: double balanced high current Gilbert Cell

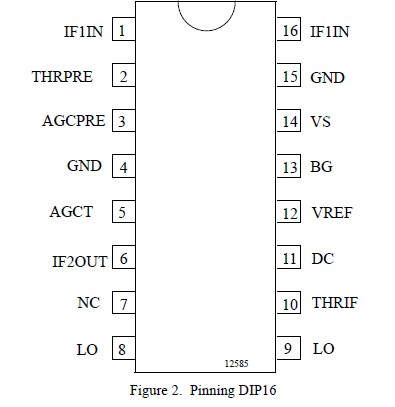

Pinout

Connection Diagram


Specifications

Reference point Pin 4, unless otherwise specified
Parameters Symbol Value Unit
Supply voltage VS 10 V
Supply current Pin 14 IS 55 mA
Output current Pin 6 IOUT 5.5 mA
Max. power dissipation P 550 mA
Junction temperature Tj +125 °C
bient temperature range Tamb 40 to +85 °C
Storage temperature range Tstg 40 to +125 °C



Description

The U2759B is a bipolar integrated IF signal processing circuit. It is designed for DAB (Digital Audio Broadcasting) applications
