U2752M

Features: U2752M splits a digital DAB input signal into its quadrature components Quadrature matching: 0 dB in magnitude, 1.6° in phase Clock frequency: 4.096 MHz Input signal Center frequency: 3.072 MHz Bandwidth: 1.536 MHz Data format: 8 bit, 4.096 MHz in 2's complement representation Output...

product image

U2752M Picture
See larger image
SeekIC No. : 004534738 Detail

U2752M: Features: U2752M splits a digital DAB input signal into its quadrature components Quadrature matching: 0 dB in magnitude, 1.6° in phase Clock frequency: 4.096 MHz Input signal Center frequency: 3....

U2752M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2752M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 U2752M splits a digital DAB input signal into its quadrature components
Quadrature matching: 0 dB in magnitude, 1.6° in phase
Clock frequency: 4.096 MHz
Input signal
  Center frequency: 3.072 MHz
  Bandwidth: 1.536 MHz
  Data format: 8 bit, 4.096 MHz in 2's complement representation
Output signal
  Select pin for baseband or 1.024-MHz center frequency
  I-, Q- components in time multiplex
  Data format: 8 bit, 4.096 MHz in 2's complement representation


Pinout

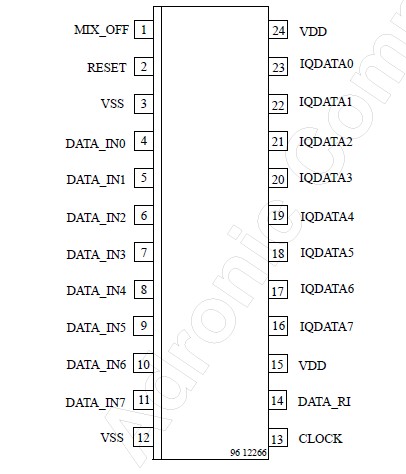

Connection Diagram


Specifications

Parameters Symbol Min. Typ. Max. Unit
DC supply voltage VDD -0.5   +7 V
Input / output voltage Vin/Vout -0.5   VDD + 0.5 V
Storage temperature Tstg 65   +150 °C



Description

The U2752M is an integrated circuit in CMOS technology for splitting a digital DAB signal into its quadrature components. The device is designed for DAB (ETS 300 401) applications.

Electrostatic sensitive device.

U2752M Observe precautions for handling
