U2750B-A

Features: 8.5 V supply voltageRF frequency range 70 to 260 MHzTwo identical mixers, selectable by bandswitch inputBalanced mixer input, balanced mixer output (open collector)Four pin voltage controlled oscillatorBalanced LO output for PLLSAW filter driver with low impedance outputPower measurement...

product image

U2750B-A Picture
See larger image
SeekIC No. : 004534736 Detail

U2750B-A: Features: 8.5 V supply voltageRF frequency range 70 to 260 MHzTwo identical mixers, selectable by bandswitch inputBalanced mixer input, balanced mixer output (open collector)Four pin voltage control...

U2750B-A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2750B-A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

8.5 V supply voltage
RF frequency range 70 to 260 MHz
Two identical mixers, selectable by bandswitch input
Balanced mixer input, balanced mixer output (open collector)
Four pin voltage controlled oscillator
Balanced LO output for PLL
SAW filter driver with low impedance output
Power measurement and generation of AGC voltage by charge pump output
Three charge pump currents selectable (zero, low, high)
Voltage regulator for stable operating characteristics


Pinout

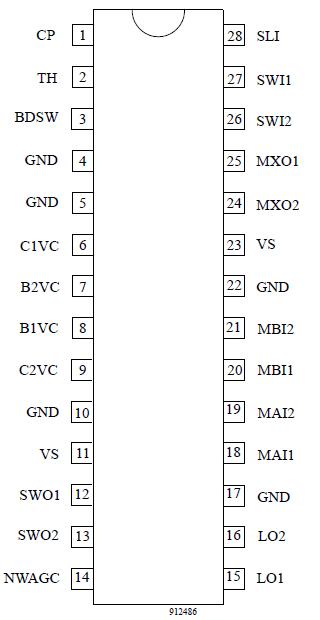

Connection Diagram


Specifications

Parameters Symbol Min. Typ. Max. Unit
Supply voltage                                               Pins 11 and 20 VS 0.3   9.5 V
Junction temperature Tj     +125 °C
Storage temperature Tstg 40   +125 °C
Ext. applied voltage at charge pump output Pin 1 VCP 0.4   6.9 V
Band switch input voltage                             Pin 3 VBDSW 0.3   6 V
NWAGC input voltage                                    Pin 14 VNWAGC 0.3   6 V
SLI input voltage                                           Pin 15 VSLI 0.3   6 V
differential input voltage of SAWdriver       Pins 16 and 17 VSWI     300 mVRMS
mixer output supply voltage                         Pin 19 VMXO 6.5   9.5 V
differential input voltage mixer A,B               Pins 22, 23, 24 and 25 VMXI     50 mVRMS



Description

The U2750B-A is a monolithically integrated tuner circuit fabricated in TEMIC's advanced UHF5S technology. U2750B-A is designed for applications in DAB receivers it performs two selectable mixers, one VCO, a SAWfilter driver, an LO output buffer, a tri-state band switch and an AGC-voltage generation block.
