U2750B-B

Features:

8.5 V supply voltage
RF frequency range 70 MHz to 260 MHz
Two identical mixers, selectable by band-switch input
Balanced mixer input, balanced mixer output (open collector)
High-impedance mixer inputs
Four-pin voltage-controlled oscillator
Balanced LO output for PLL
SAW-filter driver with low impedance output
Power measurement and generation of AGC voltage by charge-pump output
Three charge-pump currents selectable (zero, low, high)
Voltage regulator for stable operating characteristics

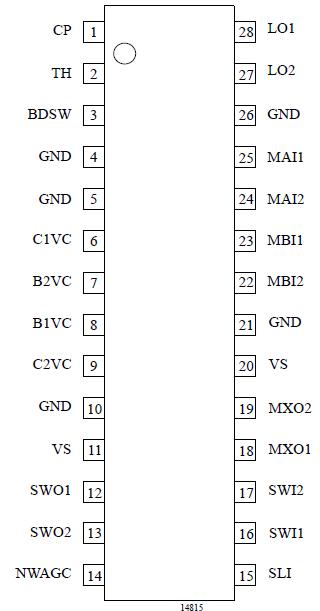

Pinout




Specifications

Parameters	Symbol	Min.	Typ.	Max.	Unit
Supply voltage                                                 Pins 11 and 20	VS	0.3		+9.5	V
Junction temperature	Tj			+125	°C
Storage temperature	Tstg	40		+125	°C
Ext. applied voltage at charge pump output   Pin 1	VCP	0.4		6.9	V
Band switch input voltage                               Pin 3	VBDSW	0.3		6	V
NWAGC input voltage                                      Pin 14	VNWAGC	0.3		6	V
SLI input voltage                                             Pin 15	VSLI	0.3		6	V
differential input voltage of SAWdriver         Pins 16 and 17	VSWI			300	mVRMS
mixer output supply voltage                            Pins 18 and19	VMXO	6.5		9.5	V
differential input voltage mixer A,B                  Pins 22, 23, 24 and 25	VMXI			50	mVRMS

Description

The U2750B-B is a monolithically integrated tuner circuit fabricated with TEMIC Semiconductors' advanced UHF5S technology. Designed for applications in DAB receivers, U2750B-B includes two selectable mixers, one VCO, a SAW-filter driver, an LO output buffer, a tristate band switch and an AGC-voltage generation block.

Electrostatic sensitive U2750B-B. Observe precautions for handling.
