U2758M-B

Features: U2758M-B supports all 4 transmission modes of EUREKA 147 DAB preliminary system definitionand ETSI DAB standard (ETS 300 401)Processing of FIC and up to 6 application channelsParallel use of up to 8 U2758M with separate application selection possibleFunctions: Program selection Frequen...

product image

U2758M-B Picture
See larger image
SeekIC No. : 004534739 Detail

U2758M-B: Features: U2758M-B supports all 4 transmission modes of EUREKA 147 DAB preliminary system definitionand ETSI DAB standard (ETS 300 401)Processing of FIC and up to 6 application channelsParallel use ...

U2758M-B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
U2758M-B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

U2758M-B supports all 4 transmission modes of EUREKA 147 DAB preliminary system definition and ETSI DAB standard (ETS 300 401)
Processing of FIC and up to 6 application channels
Parallel use of up to 8 U2758M with separate application selection possible
Functions:
  Program selection
  Frequency, time and block de-interleaving
  Depuncturing with Equal Error Protection (EEP) and Unequal Error Protection (UEP) profiles
  Soft decision 384 kbit/s Viterbi decoder
  PRBS descrambler
  Reliability information calculation
  CRC checksum comparison
Interfaces:
  Metric interface: U2757M-B interface
  DRAM interface: 256 * 4-bit dynamic RAM
  DAB3 interface: source decoder interface
   L3-bus interface: microcontroller (MC) interface

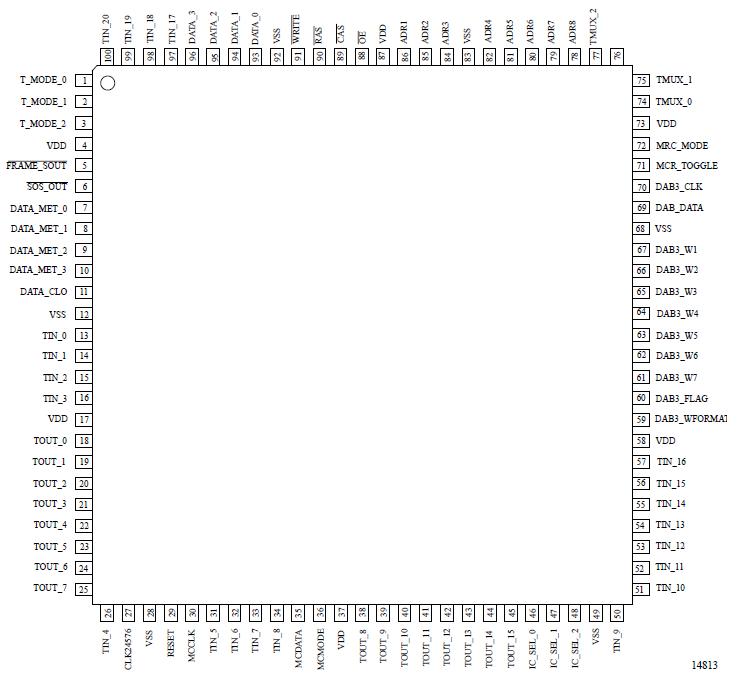

Pinout

Connection Diagram


Specifications

Parameters Symbol Min. Typ. Max. Unit
Supply voltage VDD 0.5   7 V
Input / output voltage Vin/Vout 0.5   VDD + 0.5 V
Storage temperature Tstg 65   150 °C



Description

The channel decoder chip set for the DAB receiver consists of 4 ICs (U2758B-B, U2757M-B, a dynamic RAM 256 × 4 bit and a digital signal processor, e.g., MT DSP56166). The U2758M-B performs the program selection, de-interleaving and Viterbi decoding.

Electrostatic sensitive U2758M-B. Observe precautions for handling.
