Features: • Single LIU for E3 and DS3
• Meets 'cross-connect frame' mask requirements
• Adaptive equalization for 0 - 900 ft of cable for
DS3, 0-1300 ft for E3
• Input dynamic range of 30 dB (35 mVp - 1.1Vp)
• Meets E3/DS3 jitter requirement standards
• Optional HDB3 or B3ZS line encoding/decoding
• Line and terminal side E3 or DS3 AIS insertion
• Full loopback capabilities
• Coding violation and excessive zeros monitors
• Loss of signal detection (per T1/M1 Spec)
• On-device transmit line buffer/filter for DS3; E3 square-wave output
• Receive and transmit power-down modes
• Dejitter PLL/dejitter buffer using external VCXO
• Meets all relevant ANSI and ITU-T standards
• Single +5 volt, ±5% power supply
• 80-pin low profile plastic quad flat packageApplication• Multiplexers
• E3/DSX and performance monitoring cross-connects
• Fiber optic and microwave radio terminals
• High speed DSU

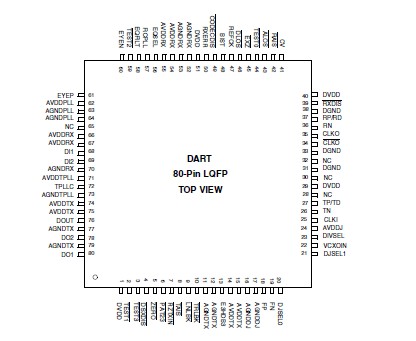

• Any E3/DS3 transmission applicationPinout
Specifications
| Parameter |
Symbol |
Min |
Max |
Unit |
Conditions |
| Supply voltage |
VDD |
-0.3 |
+7.0 |
V |
Note 1 |
| DC input voltage |
VIN |
-0.3 |
VDD + 0.3 |
V |
Note 1 |
| Ambient operating temperature |
TA |
-40 |
85 |
°C |
0 ft/min linear airflow |
| Storage temperature range |
TS |
-55 |
150 |
°C |
Note 1 |
| Component Temperature x Time |
TI |
|
270 x 5 |
°C x s |
Note 1 |
| Moisture Exposure Level |
ME |
5 |
|
Level |
per EIA/JEDEC
JESD22-A112-A |
| Relative Humidity, during assembly |
RH |
30 |
60 |
% |
Note 2 |
| Relative Humidity, in-circuit |
RH |
0 |
100 |
% |
non-condensing |
| ESD Classification |
ESD |
absolute value 2000 |
V |
Note 3 |
Notes:
1. Conditions exceeding the Min or Max values may cause permanent failure. Exposure to conditions near the Min or Max values for extended periods may impair device reliability.
2. Pre-assembly storage in non-drypack conditions is not recommended. Please refer to the instructions on the "CAUTION" label on the drypack bag in which devices are supplied.
3. Test method for ESD per MIL-STD-883D, Method 3015.7.
DescriptionThe TXC-02030 Dual-market Advanced E3/DS3 Receiver/Transmitter (DART) device performs the receive and transmit line interface functions required for transmission of E3 (34.368 Mbit/s) or DS3 (44.736 Mbit/s) signals across a coaxial interface.
The TXC-02030 DART operates from a single +5 volt supply with a minimum number of external components. Performance monitoring, loopbacks, E3/DS3 AIS generation, dejitter FIFO, dejitter PLL, PRBS diagnostic circuits and HDB3/ B3ZS encoding/decoding functions are included.
A single-device solution for interfacing E3 or DS3 signals to DSX cross-connect frames, the DART meets all applicable ANSI, BellCore and ITU-T interconnection specifications for a wide range of system applications. Specifications of TXC-02030 include, but are not limited to ANSI T1.102-1993, ANSI T1.404-1994, GR-499-CORE, ITU-T G.703, G.751, G.755, G.823, and ETSI TBR24.
TXC-02030 Data Sheet
