TX6004

Packaging :
Type : Transmitter
Operating Supply Voltage : 2.5 V, 3.3 V
Package / Case : SM-20
Operating Frequency : 914.2 MHz


Features:

• Designed for Short-Range Wireless Data Communications
• Supports RF Data Transmission Rates Up to 115.2 kbps
• 3 V, Low Current Operation plus Sleep Mode
• Stable, Easy to Use, Low External Parts Count
• Complies with Directive 2002/95/EC (RoHS)

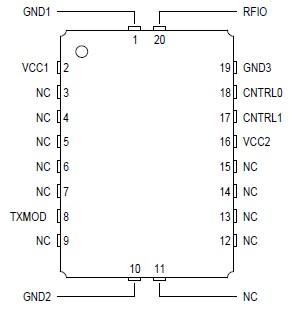

Pinout






Specifications

Characteristic Symbol Minimum Typical Maximum Units Operating Frequency fo 913.80 914.20 MHz Modulation Types OOK & ASK OOK Data Rate 20 kbps ASK Data Rate 115.2 kbps Transmitter Performance Peak RF Output Power 250 uA TXMOD Current PO 1.5 dBm Peak Current 250 uA TXMOD Current ITP 12 mA OOK Turn On/Turn Off Times tON/tOFF 15/10 us ASK Output Rise/Fall Times tTR/tTF 1.1/1.1 us 2nd - 4th Harmonic Outputs -50 dBm 5th - 10th Harmonic Outputs -55 dBm Non-harmonic Spurious Outputs -50 dBm Sleep Mode Current IS 0.7 uA Sleep to Transmit Switch Time tTOR 16 us Transmit to Sleep Switch Time tRTO 10 us Control Input Logic Low Level 200 mV Control Input Logic High Level Vcc - 300 mV Power Supply Voltage Range VCC 2.2 3.7 Vdc Operating Ambient Temperature TA -40 +85 C




Description

The TX6004 hybrid transmitter is ideal for short-range wireless data applications where robust operation, small size, low power consumption and low cost are required. All critical RF functions are contained in the hybrid, simplifying and speeding design- in. The TX6004 includes provisions for both on-off keyed (OOK) and amplitude-shift keyed (ASK) modulation. The TX6004 employs SAW filtering to suppress output harmonics, facilitating compliance with FCC 15.249 and similar regulations.
