TX6001

Maximum Data Rate :
Modulation Format :
Output Power :
Interface Type :
Packaging :
Maximum Operating Temperature : + 85 C
Package / Case : SM-20
Operating Supply Voltage : 3.3 V
Frequency Range : 868.15 MHz to 868.55 MHz


Features:

• Designed for Short-Range Wireless Data Communications
• Supports RF Data Transmission Rates Up to 115.2 kbps
• 3 V, Low Current Operation plus Sleep Mode
• Stable, Easy to Use, Low External Parts Count
• Complies with Directive 2002/95/EC (RoHS)

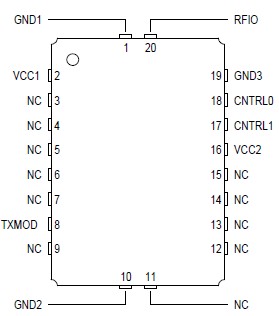

Pinout






Specifications

Characteristic Symbol Minimum Typical Maximum Units Operating Frequency fo 868.15 868.55 MHz Modulation Types OOK & ASK OOK Data Rate 20 kbps ASK Data Rate 115.2 kbps Transmitter Performance Peak RF Output Power 250 uA TXMOD Current PO 1.5 dBm Peak Current 250 uA TXMOD Current ITP 12 mA OOK Turn On/Turn Off Times tON/tOFF 15/10 us ASK Output Rise/Fall Times tTR/tTF 1.1/1.1 us 2nd - 4th Harmonic Outputs -50 dBm 5th - 10th Harmonic Outputs -55 dBm Non-harmonic Spurious Outputs -50 dBm Sleep Mode Current IS 0.7 uA Sleep to Transmit Switch Time tTOR 16 us Transmit to Sleep Switch Time tRTO 10 us Control Input Logic Low Level 200 mV Control Input Logic High Level Vcc - 300 mV Power Supply Voltage Range VCC 2.2 3.7 Vdc Operating Ambient Temperature TA -40 +85 C




Description

TX6001: Designed for Short-Range Wireless Data Communications Supports RF Data Transmission Rates Up to 115.2 kbps 3 V, Low Current Operation plus Sleep Mode Stable, Easy to Use, Low External Parts Count Complies with Directive 2002/95/EC (RoHS)
