TX6000

Packaging : Reel
Type : Transmitter
Package / Case : SM-20
Operating Frequency : 916.7 MHz


Features:

·Designed for Short-Range Wireless Data Communications
·Supports RF Data Transmission Rates Up to 115.2 kbps
·3 V, Low Current Operation plus Sleep Mode
·Stable, Easy to Use, Low External Parts Count

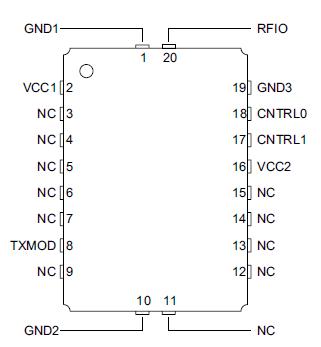

Pinout






Specifications

Rating	Value	Units
Power Supply and All Input/Output Pins	-0.3 to +4.0	V
Non-Operating Case Temperature	-50 to +100
Soldering Temperature (10 seconds)	250

Characteristic Symbol Minimum Typical Maximum Units Operating Frequency fo 916.30 916.70 MHz Modulation Types OOK & ASK OOK Data Rate 20 kbps ASK Data Rate 115.2 kbps Transmitter Performance Peak RF Output Power 250 uA TXMOD Current PO 1.5 dBm Peak Current 250 uA TXMOD Current ITP 12 mA OOK Turn On/Turn Off Times tON/tOFF 15/10 us ASK Output Rise/Fall Times tTR/tTF 1.1/1.1 us 2nd - 4th Harmonic Outputs -50 dBm 5th - 10th Harmonic Outputs -55 dBm Non-harmonic Spurious Outputs -50 dBm Sleep Mode Current IS 0.7 uA Sleep to Transmit Switch Time tTOR 16 us Transmit to Sleep Switch Time tRTO 10 us Control Input Logic Low Level 200 mV Control Input Logic High Level Vcc - 300 mV Power Supply Voltage Range VCC 2.2 3.7 Vdc Operating Ambient Temperature TA -40 +85 C




Description

The TX6000 hybrid transmitter is ideal for short-range wireless data applications where robust operation, small size, low power consumption and low cost are required.All critical RF functions are contained in the hybrid, simplifying and speeding designin.The TX6000 includes provisions for both on-off keyed (OOK) and amplitude-shift keyed (ASK) modulation. The TX6000 employs SAW filtering to suppress output harmonics,facilitating compliance with FCC 15.249 and similar regulations.

Parameters:

Technical/Catalog Information	TX6000
Vendor	RF MONOLITHICS INC (VA)
Category	RF and RFID
Features	-
Package / Case	SM-20H
Packaging	Digi-Reel?
Applications	General Data Transfer
Data Rate - Maximum	115.2kbps
Frequency	916.5MHz
Modulation or Protocol	ASK, OOK
Current - Transmitting	12mA
Operating Temperature	-40°C ~ 85°C
Power - Output	15dBm
Voltage - Supply	2.2 V ~ 3.7 V
Memory Size	-
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant by Exemption
Other Names	TX6000 TX6000 583 1097 6 ND 58310976ND 583-1097-6
