TSA1201

The TSA1201 is a 12-bit, 50MHz maximum sampling frequency Analog to Digital converter using a CMOS technology combining high performances and very low power consumption. The TSA1201 is based on a pipeline structure and digital error correction to provide excellent static linearity and achieve 10.5 effective bits at Fs=50Msps, and Fin=15MHz, with a global power consumption of 150mW.

The TSA1201 features adaptative behaviour to the application. Its architecture allows to sample from 0.5Msps up to 50Msps, with a programmable power consumption which makes the application board even more optimized. It integrates a proprietary track-and-hold structure to ensure an high analog andwidth of 1GHz and enable IF-sampling. Several features are available on the device. A voltage reference is integrated in the circuit. Differential or single-ended nalog inputs can be applied. The output data can be coded into two differential formats. A Data Ready signal is raised as the data is valid on the output and can be used for synchronization purposes.

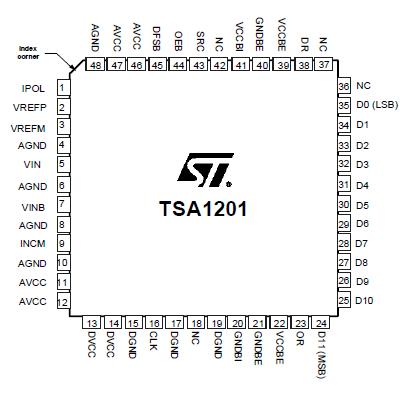

The TSA1201 is available in extended (-40°C to +85°C) temperature range, in small 48 pins TQFP package.
