Product Details

Description



Features:

· 10-bit A/D converter in deep submicron CMOS technology
· Ultra low power consumption: 35mW @ 25Msps (10mW @ 5Msps)
· Single supply voltage: 2.5V
· Input range: 2Vpp differential
· 25Msps sampling frequency
· ENOB=9.7 @ Nyquist
· SFDR typically up to 72dB @ Nyquist
· Built-in reference voltage with external bias capability
· STMicroelectronics 8, 10, 12 and 14-bits ADC pinout compatibility


Application

· Portable instrumentation
· Video processing
· Medical imaging and ultrasound
· High resolution fax and scanners
· Digital communications

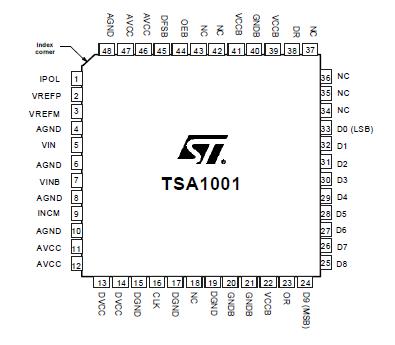

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Values
Unit
AVCC
 Analog Supply voltage 1)
0 to 3.3
V
DVCC
 Digital Supply voltage 1)
0 to 3.3
V
VCCB
 Digital buffer Supply voltage 1)
0 to 3.3
V
IDout
 Digital output current
-100 to 100
mA
Tstg
 Storage temperature
+150
°C
ESD
 Electrical Static Discharge
- HBM
- CDM-JEDEC Standard
2
1.5
KV
1). All voltages values, except differential voltage, are with respect to network ground terminal. The magnitude of input and output voltages
     must never exceed -0.3V or VCC+0V


Description

The TSA1001 is a 10-bit, 25Msps sampling frequency Analog to Digital converter using a CMOS technology combining high performances and very low power consumption.

The TSA1001 is based on a pipeline structure and digital error correction to provide excellent static linearity and go beyond 9.8 effective bits at Fs=25Msps, and Fin=10MHz.

Especially designed for portable applications, the TSA1001 only dissipates 35mW at 25Msps. When running at lower sampling frequencies, even lower consumption can be achieved. A voltage reference is integrated in the circuit to simplify the design and minimize external components. It is nevertheless possible to use the circuit with an external reference.

The output data can be coded into two different formats. A Data Ready signal is raised as the data is valid on the output and can be used for synchronization
purposes.

The TSA1001 is available in commercial (0 to +70°C) and extended (-40 to +85°C) temperature range, in a small 48 pins TQFP package.
