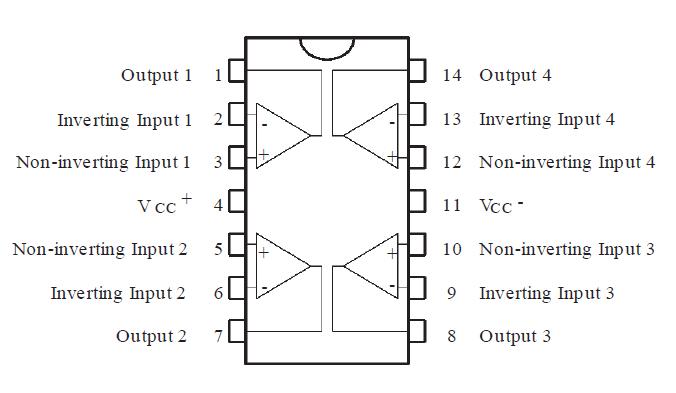

Features: `LOWOFFSET VOLTAGE : 500V max`LOWPOWER CONSUMPTION `SHORT CIRCUIT PROTECTION `LOWDISTORTION, LOW NOISE `HIGH GAIN-BANDWIDTH PRODUCT `HIGHCHANNEL SEPARATION `ESD INTERNAL PROTECTIONPinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage ±18 V Vi ...
TS514I: Features: `LOWOFFSET VOLTAGE : 500V max`LOWPOWER CONSUMPTION `SHORT CIRCUIT PROTECTION `LOWDISTORTION, LOW NOISE `HIGH GAIN-BANDWIDTH PRODUCT `HIGHCHANNEL SEPARATION `ESD INTERNAL PROTECTIONPinoutSp...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Value |
Unit |
VCC |
Supply Voltage |
±18 |
V |
Vi |
Input Voltage (positive) (negative) |
+VCC -VCC - 0.5 |
V |
Vid |
Differential Input Voltage |
± (VCC - 1) |
|
Toper |
Operating Temperature Range |
-40 to +125 |
|
Ptot |
Power Dissipation at Tamb = 70 |
400 |
mW |
Tstg |
Storage Temperature |
-65 to 150 |
The TS514I is a high performance quad operational amplifier with frequency and phase compensation built intothe chip. The internalphasecompensation allows stable operation as voltage follower in spite of its high gain-bandwidth products.
The circuit TS514I presents very stable electrical characteristics over the entire supply voltage range, and it particularly intended for professionaland telecom applications (active filters, etc).
