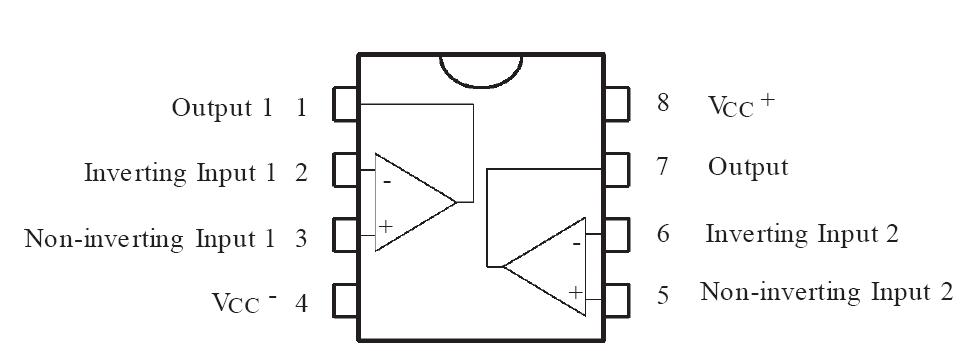

Features: · LOW INPUT OFFSET VOLTAGE: 500mV max.· LOW POWER CONSUMPTION· SHORT CIRCUIT PROTECTION· LOW DISTORTION, LOW NOISE· HIGH GAIN-BANDWIDTH PRODUCT: 3MHz· HIGH CHANNEL SEPARATION· ESD INTERNAL PROTECTION· LOW INPUT OFFSER CURRENT· MACROMODEL INCLUDED IN THIS SPECIFICATIONPinoutSpecifications...
TS512A: Features: · LOW INPUT OFFSET VOLTAGE: 500mV max.· LOW POWER CONSUMPTION· SHORT CIRCUIT PROTECTION· LOW DISTORTION, LOW NOISE· HIGH GAIN-BANDWIDTH PRODUCT: 3MHz· HIGH CHANNEL SEPARATION· ESD INTERNAL...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

| Symbol | Parameter | Value | Unit |
| VCC | Supply Voltage | ±18 | V |
| Vi | Input Voltage | ±VCC | |
| Vid | Differential Input Voltage | ±(VCC - 1) | |
| Toper | Operating Free-Air Temperature Range | -40 to +125 | °C |
| ptot | Power Dissipation at Tamb = 70°C 1) | 500 | mW |
| Tj | Junction Temperature | + 150 | °C |
| Tstg | Storage Temperature Range | -65 to +150 | °C |
The TS512A is a high performance dual operational amplifier with frequency and phase compensation built into the chip. The internal phase compensation allows stable operation as voltage follower in spite of its high gain-bandwidth products.
The circuit of the TS512A presents very stable electrical characteristics over the entire supply voltage range, and is particularly intended for professional and telecom applications (active filter, etc).
