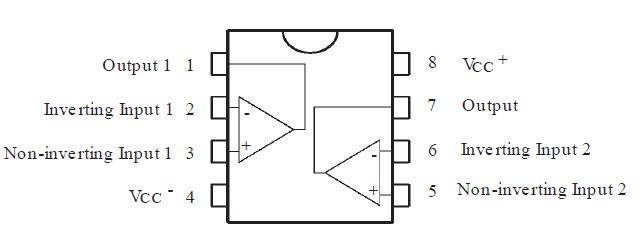

Features: `LOWOFFSET VOLTAGE : 500V max`LOWPOWER CONSUMPTION `SHORT CIRCUIT PROTECTION `LOWDISTORTION, LOW NOISE `HIGH GAIN-BANDWIDTH PRODUCT `HIGHCHANNEL SEPARATION `ESD INTERNAL PROTECTION`MACROMODEL INCLUDED IN THIS SPECIFICATIONPinoutSpecifications Symbol Parameter Value Unit VC...
TS512: Features: `LOWOFFSET VOLTAGE : 500V max`LOWPOWER CONSUMPTION `SHORT CIRCUIT PROTECTION `LOWDISTORTION, LOW NOISE `HIGH GAIN-BANDWIDTH PRODUCT `HIGHCHANNEL SEPARATION `ESD INTERNAL PROTECTION`MACROMO...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter |
Value |
Unit |
VCC | Supply Voltage |
±18 |
V |
Vi | Input Voltage |
±VCC |
|
Vid | Differential Input Voltage |
± (VCC - 1) |
|
Toper | Operating Free Air Temperature Range |
-40 to +125 |
|
Ptot | Power Dissipation at Tamb= 70 |
500 |
mW |
Tj | Junction Temperature |
150 |
|
Tstg | Storage Temperature Range |
-65 to +150 |
The TS512 is a high performance dual operational amplifier with frequency and phase compensation built intothe chip. The internalphasecompensation allows stable operation as voltage follower in spite of its high gain-bandwidth products.
The circuit of the TS512 presents very stable electrical characteristics over the entire supply voltage range, and is particularlyintendedfor professionaland telecom applications (active filter, etc).
