Product Details

Description

Features:

` LOWOFFSET VOLTAGE : 500V max.
` LOWPOWER CONSUMPTION
` SHORT CIRCUIT PROTECTION
` LOWDISTORTION, LOW NOISE
` HIGH GAIN-BANDWIDTH PRODUCT
` HIGHCHANNEL SEPARATION
` ESD INTERNAL PROTECTION
` MACROMODEL INCLUDED IN THIS SPECIFICATION

Pinout

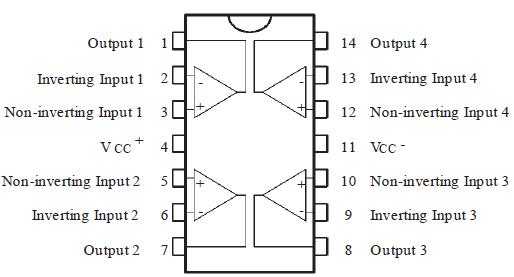

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	±18	V
V_i	Input Voltage (positive) (negative)	+V_CC -V_CC - 0.5	V
V_id	Differential Input Voltage	± (V_CC - 1)
T_oper	Operating Temperature Range	-40 to +125
P_tot	Power Dissipation at T_amb= 70	400	mW
T_stg	Storage Temperature	-65 to +150

Description

The TS514 is a high performance quad operational amplifier with frequency and phase compensation built intothe chip. The internalphasecompensation allows stable operation as voltage follower in spite of its high gain-bandwidth products.

The circuit of the TS514 presents very stable electrical characteristics over the entire supply voltage range, and it particularly intended for professionaland telecom applications (active filters, etc).
