Product Details

Description



Features:

 High Efficiency
 +32 dBm Output Power
 50W Matched Input
 SO-16 Plastic Package
 Monolithic Power Amp


Application

 AMPS Mobile Phones
 CDPD Modems
 General ISM Band Applications

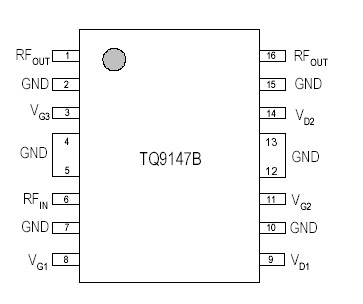

Pinout

Connection Diagram


Specifications

Parameter
Value
Units
DC Power Supply 1
8.0
V
DC Gate Voltage
-5.0
V
RF Input Power
20
dBm
Storage Temperature
-55 to 150
° C
Operating Temperature (case)
-40 to 110
° C



Description

The TQ9147B is a high efficiency two stage GaAs MESFET power amplifier IC intended for use in AMPS (IS-19) applications that operate in the US Cellular (824 - 849 MHz) band. The TQ9147B requires minimal external RF circuitry and operates from a 4.8-Volt supply. With its flexible, off-chip, single component output matching circuit, the TQ9147B is suitable for use in other applications near the cellular band, such as 900 MHz ISM applications.

The TQ9147B utilizes a space saving SO-16 plastic package that minimizes board area and cost.
