Product Details

Description

Features:

Single 3V- 6V supply
Wide frequency range
+17 dBm output power
Input and output matched to 50
SO-8 surface mount plastic package

Application

Power Amplifier drivers
PCN Medium-power amplifiers
Medium-power WLANs
CDPD Modems
Base Station receivers

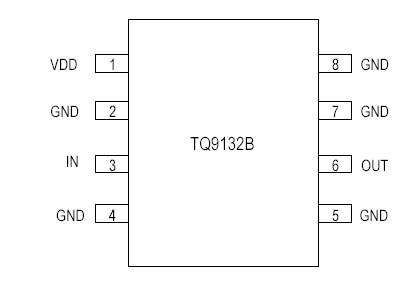

Pinout

Connection Diagram

Specifications

Parameter	Value	Units
DC Power Supply	7.0	V
Power Dissipation	500	mW
Input Power	+10	dBm
Storage Temperature	-55 to 150	° C
Operating Temperature (case)	-40 to 70	° C
Thermal Resistance	135.5	^oC/W

Description

The TQ9132B amplifier is an 800-2500 MHz amplifier capable of providing moderate output power (50 mW) for a wide variety of transmit and receive applications. The amplifier's input and output are matched to 50 W with internal circuitry, simplifying interfaces to 50 W systems. In addition, DC blocking capacitorsof TQ9132B are included on chip, permitting direct connections to the input and output. Its 8-pin surface mount package and low cost of TQ9132B are well suited to many wireless communications applications.
