TPD1032F

Features: • Built-in two power IC chips with a new structure combining a control block and a vertical power MOSFET (L2--MOS) on each chip.• Can directly drive a power load from a CMOS or TTL logic.• Built-in protection circuits against overvoltage (active clamp), overtemperature ...

product image

TPD1032F Picture
See larger image
SeekIC No. : 004526270 Detail

TPD1032F: Features: • Built-in two power IC chips with a new structure combining a control block and a vertical power MOSFET (L2--MOS) on each chip.• Can directly drive a power load from a CMOS or...

TPD1032F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPD1032F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in two power IC chips with a new structure combining a control block and a vertical power MOSFET (L2--MOS) on each chip.
• Can directly drive a power load from a CMOS or TTL logic.
• Built-in protection circuits against overvoltage (active clamp), overtemperature (thermal shutdown), and overcurrent (current limiter).
• Low Drain-Source ON-resistance: RDS (ON) = 0.4 Ω (max) (@VIN = 5 V, ID = 1 A, Tch = 25°C)
• Low Leakage Current: IDSS = 10 µA (max) (@VIN = 0 V, VDS = 30 V, Tch = 25°C)
• Low Input Current: IIN = 300 A (max) (@VIN = 5 V, Tch = 25°C)
• 8-pin SOP package for surface with embossed-tape packing.




Pinout

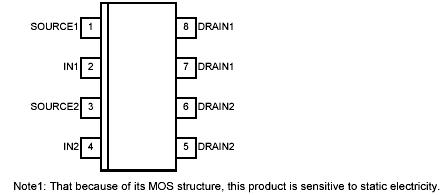

Connection Diagram


Specifications

Characteristics

Symbol

Rating

Unit

Drain-source voltage

VDS (DC)

20

V

Drain current

ID

Internally Limited

A

Input voltage

VIN

-0.3 to 7

V

Power dissipation (t = 10 s)

PD

2.0

(Note3)

W

Operating temperature

Topr

-40 to 110

°C

Channel temperature

Tch

150

°C

Storage temperature

Tstg

-55 to 150

°C

Note3: Drive operation: Mount on glass epoxy boad [1 inch2 × 0.8 t] (in the two devices driving)
