Product Details

Description

Features:

· Very Low Power . . . 110 mW Typ at 5 V
· Fast Response Time . . . tPLH = 2.5 ms Typ With 5-mV Overdrive
· Single Supply Operation:
    TLC393C . . . 3 V to 16 V
    TLC393I . . . 3 V to 16 V
    TLC393Q . . . 4 V to 16 V
    TLC393M . . . 4 V to 16 V
    TLC193M . . . 4 V to 16 V
· On-Chip ESD Protection

Pinout

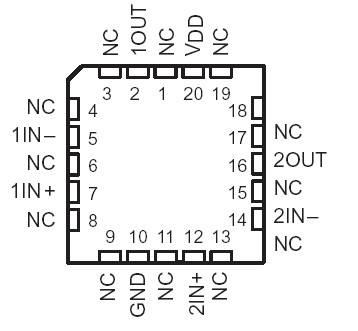

Connection Diagram

Specifications

Supply voltage range, V_DD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 18 V
Differential input voltage, V_ID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to V_DD
Output voltage range, V_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 0.3 V to 16 V
Input current, I_I. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±5 mA
Output current, I_O (each output) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Total supply current into V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..40 mA
Total current out of GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mA
Continuous total power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See Dissipation Rating Table
Operating free-air temperature range: TLC393C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
                                                          TLC393I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 40°C to 85°C
                                                          TLC393Q . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 125°C
                                                          TLC393M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
                                                          TLC193M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Case temperature for 60 seconds: FK package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package . . . . . . . . . . . . .260°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package . . . . . . . . . . . . . . . . 300°C

Description

The TLC193 and TLC393 consist of dual independent micropower voltage comparators designed to operate from a single supply. They are functionally similar to the LM393 but uses one-twentieth the power for similar response times. The open-drain MOS output stage interfaces to a variety of loads and supplies. For a similar device with a push-pull output configuration (see the TLC3702 data sheet).

Texas Instruments LinCMOSE process of TLC393 offers superior analog performance to standard CMOS processes. Along with the standard CMOS advantages of low power without sacrificing speed, high input impedance, and low bias currents, the LinCMOSE process offers extremely stable input offset voltages, even with differential input stresses of several volts. This characteristic makes TLC393 possible to build reliable CMOS comparators.

The TLC393C is characterized for operation over the commercial temperature range of TA = 0°C to 70°C. The TLC393I is characterized for operation over the extended industrial temperature range of TA = 40°C to 85°C. The TLC393Q is characterized for operation over the full automotive temperature range of TA = 40°C to 125°C. The TLC193M and TLC393M are characterized for operation over the full military temperature range of TA = 55°C to 125°C.
