Product Details

Description



Pinout

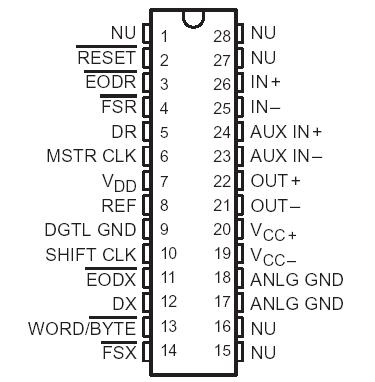

Connection Diagram


Specifications

Supply voltage range, VCC+ (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Supply voltage range, VDD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Output voltage range, VO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Digital ground voltage range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Operating free-air temperature range, TA: TLC32040C, TLC32041C  . . . . . . . . . . . . . 0°C to 70°C
                                                                                       TLC32040I, TLC32041  . . .40°C to 85°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 125°C
Case temperature for 10 seconds: FN package  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package  . . . . . . . . . . .260°C


Description

The TLC32040C are complete analog-to-digital and digital-to-analog input/ output systems, each on a single monolithic CMOS chip. This TLC32040C integrates a bandpass switched-capacitor antialiasing input filter, a 14-bit-resolution A/D converter, four microprocessor-compatible serial port modes, a 14-bit-resolution D/A converter, and a low-pass switched-capacitor output-reconstruction filter.
