· 14-Bit Dynamic Range ADC and DAC
· Variable ADC and DAC Sampling Rate Up
to 19,200 Samples per Second
· Switched-Capacitor Antialiasing Input Filter
and Output-Reconstruction Filter
· Serial Port for Direct Interface to TMS32011,
TMS320C17, TMS32020, and TMS320C25
Digital Signal Process
· Synchronous or Asynchronous ADC and
DAC Conversion Rate With Programmable
Incremental ADC and DAC Conversion
Timing Adjustments
· Serial Port Interface to SN74299
Serial-to-Parallel Shift Register for Parallel
Interface to TMS32010, TMS320C15, or
Other Digital Processors
· 600-Mil Wide N Package (CL to CL)
· 2s Complement Format
· CMOS Technology

Pinout

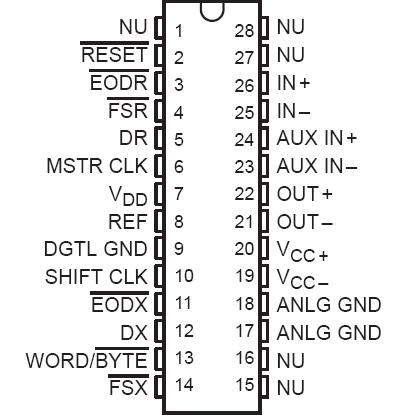

Connection Diagram

Specifications

Supply voltage range, V_CC+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 15 V
Supply voltage range, V_DD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Output voltage range, V_O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Input voltage range, V_I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Digital ground voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Operating free-air temperature range, TA: TLC32040C, TLC32041C . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
TLC32040I, T_LC32041 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 85°C
Storage temperature range, T_stg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to 125°C
Case temperature for 10 seconds: FN package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: N package . . . . . . . . . . . . . . . . . . . . 260°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: Voltage values for maximum ratings are with respect to VCC..

Description

The TLC32040 and TLC32041 are complete analog-to-digital and digital-to-analog input/ output systems, each on a single monolithic CMOS chip. This TLC32041 integrates a bandpass switched-capacitor antialiasing input filter, a 14-bit-resolution A/D converter, four microprocessor-compatible serial port modes, a 14-bit-resolution D/A converter, and a low-pass switched-capacitor output-reconstruction filter.
