Product Details

Description



Features:

• Advanced LinCMOSE Silicon-Gate Process Technology
• 14-Bit Dynamic Range ADC and DAC
• Variable ADC and DAC Sampling Rate up to 19200 Samples Per Second
• Switched-Capacitor Antialiasing Input Filter and Output-Reconstruction Filter
• Serial Port for Direct Interface to SMJ320E14, SMJ32020, SMJ320C25, and SMJ320C30 Digital Processors
• Synchronous or Asynchronous ADC and DAC Conversion Rates With Programmable Incremental ADC and DAC Conversion Timing Adjustments
• Serial Port Interface to SN54299 Serial-to-Parallel Shift Register for Parallel Interface to SMJ320C10, SMJ320C15, SMJ320E15, or Other Digital Processors

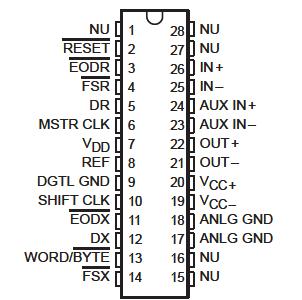

Pinout

  Connection Diagram


Specifications

Supply voltage range, VCC+ (see Note 1) . . . . . . . . . . . . . 0.3 V to 15 V
Supply voltage range, VDD . . . . . . . . . . . . . . . . . . . . . . . .. 0.3 V to 15 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Digital ground voltage range . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 15 V
Operating free-air temperature range . . . . . . . . . . . . . . .55°C to 125°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Case temperature for 60 seconds: FK package . . . . . . . . . . . . . . . .. 260°C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J package .... 300°C
NOTE 1: Voltage values for maximum ratings are with respect to VCC.



Description

The TLC32040M interface circuit is a complete analog-to-digital and digital-to-analog input/output system on a single monolithic CMOS chip. This TLC32040M integrates a band-pass switched-capacitor antialiasing input filter, a 14-bit-resolution A/D converter, four microprocessor-compatible serial port modes, a 14-bit-resolution D/A converter, and a low-pass switched-capacitor output reconstruction filter.The TLC32040M offers numerous combinations of master clock input frequencies and conversion/sampling rates, which can be changed via digital processor control.

Typical applications for this integrated circuit  TLC32040M include modems (7.2-, 8-, 9.6-, 14.4-, and 19.2-kHz sampling rate), analog interface for digital signal processors (DSPs), speech recognition/storage systems, industrial process control, biomedical instrumentation, acoustical signal processing, spectral analysis, data acquisition, and instrumentation recorders. Four serial modes, which allow direct interface to the SMJ320E14, SMJ32020, SMJ320C25, and SMJ320C30 digital signal processors, are provided. Also, when the transmit and receive sections of the analog interface circuit (AIC) are operating synchronously, it will interface to two SN54299 serial-to-parallel shift registers.These serial-to-parallel shift registers of TLC32040M can then interface in parallel to the SMJ320C10, SMJ320C15,SMJ320E15, other digital signal processors, or external FIFO circuitry. Output data pulses are emitted to inform the processor that data transmission is complete or to allow the DSP to differentiate between two transmitted bytes. A flexible control scheme of TLC32040M  is provided so that the functions of the integrated circuit can be selected and adjusted coincidentally with signal processing via software control.
