TLC34075

Features: • Versatile multiplexing interface allows lower pixel bus rate• High level of integration provides lower system cost and complexity• Direct VGA pass-through capability• Directly interfaces to TMS34010/TMS34020 and other graphics processors• Triple 8-bit D/A ...

product image

TLC34075 Picture
See larger image
SeekIC No. : 004520610 Detail

TLC34075: Features: • Versatile multiplexing interface allows lower pixel bus rate• High level of integration provides lower system cost and complexity• Direct VGA pass-through capability...

TLC34075 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC34075
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Versatile multiplexing interface allows lower pixel bus rate
• High level of integration provides lower system cost and complexity
• Direct VGA pass-through capability
• Directly interfaces to TMS34010/TMS34020 and other graphics processors
• Triple 8-bit D/A converters
• 66-, 85-, 110-, and 135-MHz versions
• 256-word color palette RAM
• Palette page register
• On-chip voltage reference
• RS-343A-compatible outputs
• TTL-compatible inputs
• Standard MPU interface
• Pixel word mask
• On-chip clock selection
• True color (direct addressing) mode
• Directly interfaces to video RAM
• Supports split shift register transfers
• Software downward-compatible with INMOS IMSG176/8 and Brooktree BT476/8 color palettes
• TIGATM-software-standard compatible
• LinEPIC 1-µm CMOS process


Pinout

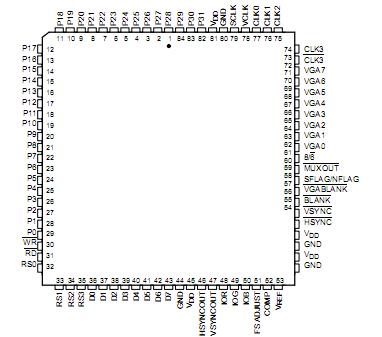

Connection Diagram


Specifications

Supply voltage, VDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...... . . 7 V
Input voltage range, VI  . . . . . . . . . . . . . . . . . . . . . . . ... . .0.5 V to VDD + 0.5 V
Analog output short-circuit duration to any power supply or common... unlimited
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . .... . 0°C to 70°C
Storage temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Junction temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175°C
Case temperature for 10 seconds: FN package . . . . . . . . . . . . . . . . . . . . .260°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . .260°C .


Description

The processor interface TLC34075 is controlled via read and write strobes (RD, WR), four register select pins(RS<0:3>), and the 8/6 select pin. The 8/6 select pin is used to select between 8- or 6-bit operation and isprovided in order to maintain compatibility with the IMSG176/8 color palette. This operation is carried outin order to utilize the maximum range of the DACs.

The internal register map of TLC34075 is shown in Table 1. The MPU interface operates asynchronously, with datatransfers being synchronized by internal logic. All the register locations support read and write operations.
