Features:

• Compliant with Audio Codec (AC) '97 Specification
• Serial (AC-Link) Interface Port
• Full-Duplex Codec with 18-Bit Resolution ADC and DAC
• 48-kHz Sample Rate
• Multiple Stereo Input Mixer: LINE, CD, VID, and AUX
• Line Level Mono Inputs for Speakerphone and BEEP
• Mono Mic Input Switchable From Two Different Sources
• Very Low Interchannel Crosstalk Preserves Stereo Fidelity
• ADC and DAC Total Harmonic Distortion Met for Full-Scale (0.9 Vrms) Levels
• Stereo Line Level Output Plus Mono Output For Speakerphone
• Mono and Stereo Volume Control
• Power Management Support (Power Down Mode)
• Interfaces to 5-V or 3.3-V Digital Controller
• Operates From 3.3-V or 5.5-V Power Supply
• Standard 48-Pin TQFP Package
• Tone Free ADC and DAC in PC Environment


Pinout

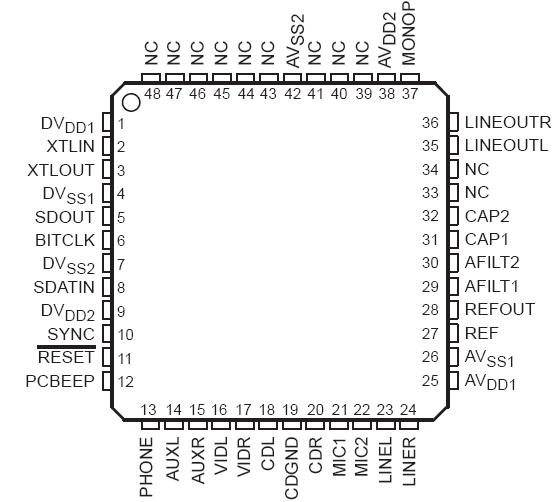

Connection Diagram


Specifications

Supply voltage range, AVDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Supply voltage range, DVDD (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 7 V
Analog input voltage range (see Note 1) . . . . . . . . . . . . . . AVSS 0.3 V to AVDD + 0.3 V
Digital Input voltage range (see Note 2) . . . . . . . . . . . . . . DVSS 0.3 V to DVDD + 0.3 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Lead temperature from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .240°C
Lead temperature from case for 2 minutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183°C
ESD tolerance (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000 V
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated
under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for
extended periods may affect device reliability.
NOTES: 1. Voltage values for maximum ratings are with respect to AGND.
2. Voltage values for maximum ratings are with respect to DGND.
3. Human Body Model per Method 3015.2 of MILSTD883B.


Description

The TLC320AD91C is designed to be 100% compliant with the audio codec '97 (AC'97) standard specification. The codec is designed to be controlled by a digital controller. The two fixed 48-kHz sample rate DACs support a stereo PCM output channel that contains a mix, determined by the codec controller, of all digital audio sources, including an internal synthesizer, and any other digital sources. The output of these DACs TLC320AD91C is mixed with additional analog sources and sent to the independently-controlled LINOP output. For a speakerphone, the MONOP output delivers either mic only or a mono mix of sources to a telephony subsystem. The ADC path supports two channels of fixed 48-kHz sample rate inputs. The standard stereo PCM input channel of TLC320AD91C supports the record of any mono or stereo source, or a mix of sources.
