TLC320AD90C

Features: • Compatible with INTEL audio codec '97 specification• Very high sound quality• Tone free ADC and DAC in PC environment• Exceeds many performance parameters of the AC'97 specification• Serial (AC-Link) interface port• Standard 64-pin LQFP (TQFP) packag...

product image

TLC320AD90C Picture
See larger image
SeekIC No. : 004520603 Detail

TLC320AD90C: Features: • Compatible with INTEL audio codec '97 specification• Very high sound quality• Tone free ADC and DAC in PC environment• Exceeds many performance parameters of the ...

TLC320AD90C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC320AD90C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible with INTEL audio codec '97 specification
• Very high sound quality
• Tone free ADC and DAC in PC environment
• Exceeds many performance parameters of the AC'97 specification
• Serial (AC-Link) interface port
• Standard 64-pin LQFP (TQFP) package
• Full-duplex codec with 16-bit resolution ADC and DAC
• 48-kHz sample rate
• Four analog stereo inputs: LINE_IN, CD, VIDEO, and AUX
• Line level mono inputs for speakerphone and BEEP
• Unique mono mic input allows quick switching from two different sources without pop noises
• Buffered voltage reference output is designed for microphone biasing
• Very high performance CDROM input rejects 5x standard pseudo-diff design yeilding 65 dB
  rejection of CDROM servo noises
• Very high PSRR (55 dB including very high frequency bands) 5x better than standard low
  noise easily obtained at system level
• Very low interchannel crosstalk (<100 dB) preserves stereo fidelity
• High fidelity linear phase FIR digital filter for ADC and DAC
• High fidelity linear phase Bessel DAC filters utilized
• ADC and DAC THD met for full scale (1 VRMS) levels
• Stereo line level output
• Mono output for speakerphone
• Power management support
• Low operating current consumption typically less than 55 mA total when outputs are driving
  10-kW loads
• Very low standby current (100 mA) in power-down mode
• Interfaces to 5-V or 3.3-V digital controller


Pinout

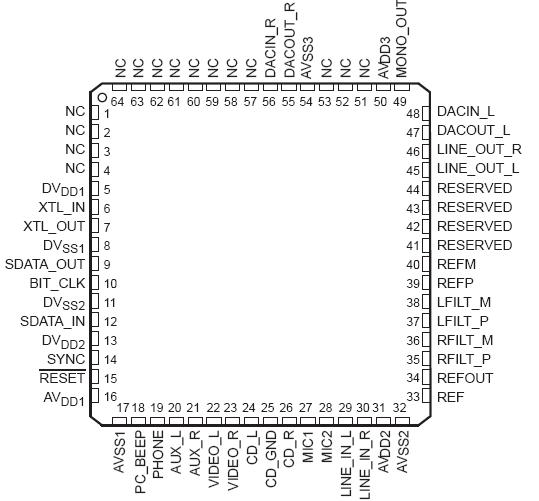

Connection Diagram


Specifications

Supply voltage range, AVDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Supply voltage range, DVDD (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Analog Input voltage (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to AVDD + 0.3 V
Digital Input voltage (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDD + 0.3 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Case temperature for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70°C
Lead temperature from case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70°C
ESD tolerance (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000 V
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated
under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for
extended periods may affect device reliability.
NOTES: 1. Voltage values for maximum ratings are with respect to AGND.
2. Human Body Model per Method 3015.2 of MILSTD883B.


Description

The TLC320AD90C is designed to be 100% compliant with the audio codec '97 (AC'97) standard specification. The codec is designed to be controlled by a digital controller. The two fixed 48-kHz sample rate DACs support a stereo PCM output channel that contains a mix, determined by the codec controller, of all digital audio sources, including an internal synthesizer, and any other digital sources. The output of these DACs TLC320AD90C is mixed with additional analog sources and sent to the independently-controlled LINE_OUT output. For a speakerphone, the MONO_OUT output delivers either mic only or a mono mix of sources to a telephony subsystem. The ADC path supports two channels of fixed 48-kHz sample rate inputs. The standard stereo PCM input channel of TLC320AD90C supports the record of any mono or stereo source, or a mix of sources
