TLC320AD80C

Features: Highly Integrated Analog Audio FunctionsFlexible Architecture Allows Variable Interconnects Between FunctionsSigma-Delta DAC With 16-Bit Resolution and 82-dB Performance TypicalInternal Monaural Decoder for TV Baseband AudioFour Analog Audio Inputs: Two Stereo and Two MonoVolume and Bala...

product image

TLC320AD80C Picture
See larger image
SeekIC No. : 004520600 Detail

TLC320AD80C: Features: Highly Integrated Analog Audio FunctionsFlexible Architecture Allows Variable Interconnects Between FunctionsSigma-Delta DAC With 16-Bit Resolution and 82-dB Performance TypicalInternal Mo...

TLC320AD80C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC320AD80C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Highly Integrated Analog Audio Functions
Flexible Architecture Allows Variable Interconnects Between Functions
Sigma-Delta DAC With 16-Bit Resolution and 82-dB Performance Typical
Internal Monaural Decoder for TV Baseband Audio
Four Analog Audio Inputs: Two Stereo and Two Mono
Volume and Balance Control:  69 Step at 1 dB per Step With Mute
Selectable 50/15 ms De-Emphasis Analog Filter
Uncommitted Wide-Band Analog 2:1 Multiplexer
Multiplexed Analog Output can Select the Output of the DAC or Analog Data Pass-Through From
One of the Analog Audio Inputs
Two Flexible Digital Serial Data Ports (Philips I2S Protocol, Left-Justified, and Right-Justified Formats)
SPI Bus-Compatible Serial Control Port
Sample Rates Supported in DAC: 8 kHz to 48 kHz
Digital Serial Ports Support 16-Bit or 18-Bit PCM Digital Audio Data Format
Analog Stereo Inputs can be Configured as Mono Inputs Through the Left Channel
Analog Output With 600-W  Load Drive and Short Circuit Protection
Internal Voltage Reference
TTL/CMOS Compatible
Single 5-V Power Supply, 64-Pin TQFP Package


Application

Direct Broadcast Satellite (DBS) Set-Top Boxes
Digital Cable or Telco Set-Top Boxes
High Definition Television (HDTV), Digital Audio Broadcast Receivers
Video Laser Disks, Video CD, and CD-I Players

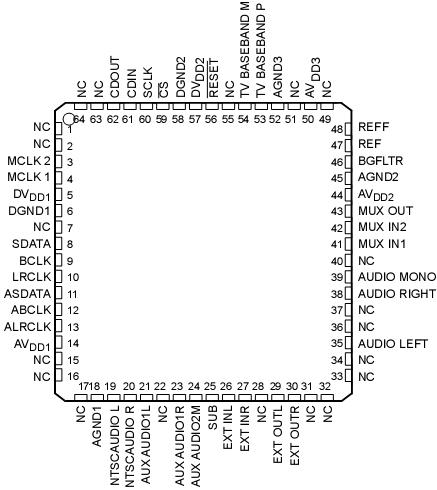

Pinout

Connection Diagram


Specifications

Supply voltage range, AVDD(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to 6 V
Supply voltage range, AVDD(see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .0.3 V to 6 V
Analog input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 0.3 V to AVDD + 0.3 V
Digital input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDD + 0.3 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . .  .. . . 0 C to 70°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
