TLC320AD75C

Features: Single 5-V (Analog/Digital) Power Level and 3.3-V to 5-V Digital Interface LevelSample Rates up to 48 kHz20-Bit Resolution ConversionsSignal-to-Noise Ratio (EIAJ) of 100 dB for the ADCTotal Harmonic Distortion + Noise of 0.0017% for the ADCSignal-to-Noise Ratio (EIAJ) of 104 dB for the D...

product image

TLC320AD75C Picture
See larger image
SeekIC No. : 004520598 Detail

TLC320AD75C: Features: Single 5-V (Analog/Digital) Power Level and 3.3-V to 5-V Digital Interface LevelSample Rates up to 48 kHz20-Bit Resolution ConversionsSignal-to-Noise Ratio (EIAJ) of 100 dB for the ADCTota...

TLC320AD75C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC320AD75C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Single 5-V (Analog/Digital) Power Level and 3.3-V to 5-V Digital Interface Level
Sample Rates up to 48 kHz
20-Bit Resolution Conversions
Signal-to-Noise Ratio (EIAJ) of 100 dB for the ADC
Total Harmonic Distortion + Noise of 0.0017% for the ADC
Signal-to-Noise Ratio (EIAJ) of 104 dB for the DAC
Total Harmonic Distortion + Noise of 0.0013% for the DAC
Internal Voltage Reference (Vref)
Serial Port Interface
Differential Architecture
DAC Provides PWM Output
Digital De-emphasis Filtering for 32-, 44.1-, and 48-kHz Sample Rates for the DAC
Digital Attenuation/Soft Mute Function for the DAC
Small 56-Pin DL Plastic Small-Outline Package


Pinout

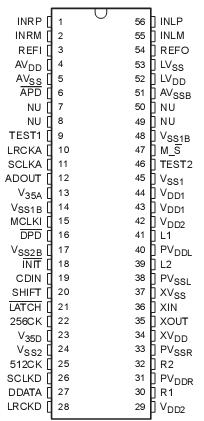

Connection Diagram


Specifications

Supply voltage range, AVDD , LVDD  (see Note 1) . . . . . . . . . . . . . . . . . . . 0.3 V to 6.5 V
Supply voltage range, VDD1 , V35A  (see Note 2) . . . . . . . . . . . . . . . . . . . .0.3 V to 6.5 V
Supply voltage range, PV DD(L/R) , VDD2 , V35D , XVDD (see Note 3) . . . .  0.3 V to 6.5 V
Analog input voltage range, INLP, INLM, INRP, INRM . . . . . . .. .   0.3 V to AVDD  + 0.3 V
Digital input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to V DD1/2+ 0.3 V
Output voltage range, VO : L1, L2, R1, R2 . . . . . . . . . . . . . . . . .  0.3 V to AVDD  + 0.3 V
Operating free-air temperature range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to 70
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to 150
Case temperature for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds . . . . . . . . . . . . . . . 260


Description

The sigma-delta ADC converter TLC320AD75C consists of an oversampling analog modulator and digital decimation filter.

The sigma-delta DAC TLC320AD75C incorporates an interpolation finite impulse-response (FIR) filter and oversampled modulator. The pulse-width-modulation (PWM) digital output feeds an external low-pass filter to recover the analog audio signal. Two control registers configure the DAC. The attenuation register controls the attenuation range, de-emphasis enable, and mute selection. The system register of TLC320AD75C controls the data format and de-emphasis filter-sample rate.
