TLC320AD545I

Features: • Analog, Digital, and Monitor Amp Power Supplies: 5 V or 3.3 V• Differential and Single-Ended Driving of Analog Output• Software Power-Down Mode• Sample Rate Up to 11.025 kHz• 16-Bit Signal Processing in the Codec With 2s-Complement Data Format• Typic...

product image

TLC320AD545I Picture
See larger image
SeekIC No. : 004520591 Detail

TLC320AD545I: Features: • Analog, Digital, and Monitor Amp Power Supplies: 5 V or 3.3 V• Differential and Single-Ended Driving of Analog Output• Software Power-Down Mode• Sample Rate Up to...

TLC320AD545I Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLC320AD545I
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Analog, Digital, and Monitor Amp Power Supplies: 5 V or 3.3 V
• Differential and Single-Ended Driving of Analog Output
• Software Power-Down Mode
• Sample Rate Up to 11.025 kHz
• 16-Bit Signal Processing in the Codec With 2s-Complement Data Format
• Typical 80-db Dynamic Range
• Total Signal-to-Noise + Distortion of 80 dB for the ADCs
• Total Signal-to-Noise + Distortion of 78 dB for the DACs
• Programmable Gain Amplifier
• 600-W Driver
• 8-W AT41 Differential Speaker Driver With Programmable Gain Amplifier
• Flash Write Enable Circuit Provide Power for Writing the Flash Memory Device
• Available in 48-Pin PT (TQFP) Package Operating From 40􀀀C to 85􀀀C
• Transformer Reference ( 2.5 mA Source and Sink at 2.5 V for 5 V-Supply and 1.5 V for 3.3-V Supply) to allow Single-Ended Driving


Pinout

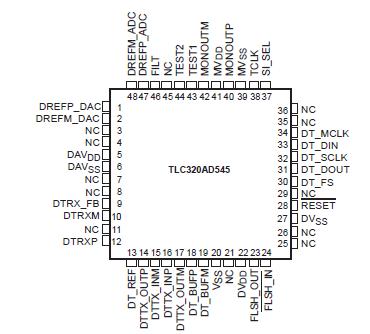

Connection Diagram


Specifications

Supply voltage range, DVDD, AVDD, (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 0.3 V to 7 V
Output voltage range, all digital output signals . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 0.3 V to DVDD+0.3 V
Input voltage range, all digital input signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 0.3 V to DVDD+0.3 V
Case temperature for 10 seconds: PM package 260􀀀. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .
Operating free-air temperature range, TA 40 to 85􀀀. . . . . . . . . . . .  . . .  . . . . . . . . . . .  . . . . . . . . . . . . . .
Storage temperature range, Tstg 65to 150􀀀. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
