THC63LVDM63R

Features: • 28:4 Data channel compression at up to 298 Megabytes per sec throughput• Wide dot clock range: 20-85MHz suited for VGA, SVGA, XGA and SXGA• Narrow bus (10 lines or 8 lines) reduces cable size• Support Reduced swing LVDS for Low EMI• 200mV swing LVDS/350mV ...

product image

THC63LVDM63R Picture
SeekIC No. : 004518655 Detail

THC63LVDM63R: Features: • 28:4 Data channel compression at up to 298 Megabytes per sec throughput• Wide dot clock range: 20-85MHz suited for VGA, SVGA, XGA and SXGA• Narrow bus (10 lines or 8 li...

floor Price/Ceiling Price

Part Number:
THC63LVDM63R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 28:4 Data channel compression at up to 298 Megabytes per sec throughput
• Wide dot clock range: 20-85MHz suited for VGA, SVGA, XGA and SXGA
• Narrow bus (10 lines or 8 lines) reduces cable size
• Support Reduced swing LVDS for Low EMI
• 200mV swing LVDS/350mV swing LVDS selectable
• Support Spread Spectrum Clock Generator
• On chip Input Jitter Filtering
• PLL requires No external components
• Single 3.3V supply with 125mW(TYP)
• Power-Down Mode
• Low profile 56 or 48 Lead TSSOP Package
• Clock Edge Programmable
• Improved Replacement for the National DS90C383 or DS90C363



Pinout

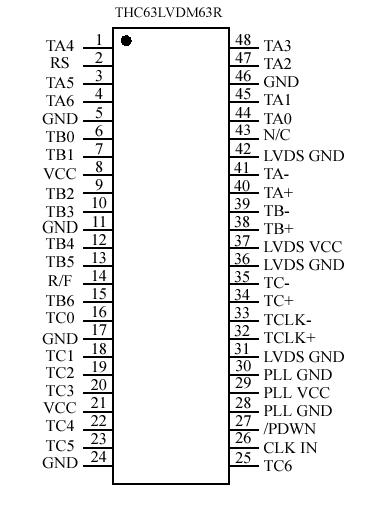

  Connection Diagram




Specifications

Supply Voltage (VCC) -0.3V ~ +4.0V
CMOS/TTL Input Voltage -0.3V ~ (VCC + 0.3V)
CMOS/TTL Output Voltage -0.3V ~ (VCC + 0.3V)
LVDS Driver Output Voltage -0.3V ~ (VCC + 0.3V)
Output Current continuous
Junction Temperature +125°C
Storage Temperature Range -55 ~ +150°C °C
Resistance to soldering heat +260 /10sec°C
Maximum Power Dissipation @+25 °C 0.5W



Description

The THC63LVDM83R transmitter converts 28bits of CMOS/TTL data into LVDS (Low Voltage Differential Signaling) data stream. A phase-locked transmit clock
is transmitted in parallel with the data streams over a fifth LVDS link. At a transmit clock frequency of 85MHz, 28bits of RGB data and 4bits of LCD timing and control data (HSYNC, VSYNC, CNTL1, CNTL2) are transmitted at a rate of 595Mbps per LVDS channel. Also available is THC63LVDM63R that converts 21bits of CMOS/TTL data into LVDS(Low Voltage Differential Signaling) data stream. Both transmitters can be programmed reduced swing LVDS through a dedicated pin for low power consumption and EMI.
