TFP513

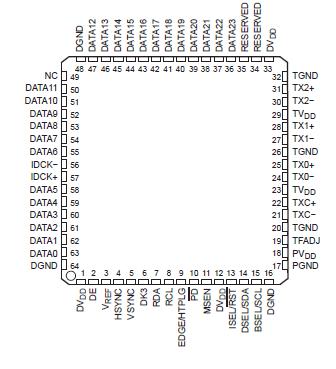

The TFP513 is a Texas Instruments PanelBus flat panel display product, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions, targeted at the PC and consumer electronics industry.

The TFP513 provides a universal interface to allow a glueless connection to most commonly available graphics controllers. Some of the advantages of this universal interface include selectable bus widths, adjustable signal levels, and differential and single-ended clocking. The adjustable 1.1-V to 1.8-V digital interface provides a low-EMI, high-speed bus that connects seamlessly with a 12-bit or 24-bit interface. The DVI interface supports flat panel display resolutions up to UXGA at 165 MHz in 24-bit true color pixel format.

The TFP513 combines PanelBus circuit innovation with TI's advanced 0.18 m EPIC-5 CMOS process technology and TI's ultralow ground inductance PowerPAD package. The result is a compact 64-pin TQFP package providing a reliable, low-noise, high-speed, digital interface solution. The TFP513 comes with embedded preprogrammed HDCP keys, thus eliminating the need for an external storage device to store the HDCP keys and the need for the customer to purchase HDCP keys from the licensing authority. An encryption scheme ensures that the embedded HDCP keys are encrypted thus providing the highest level of key security.
