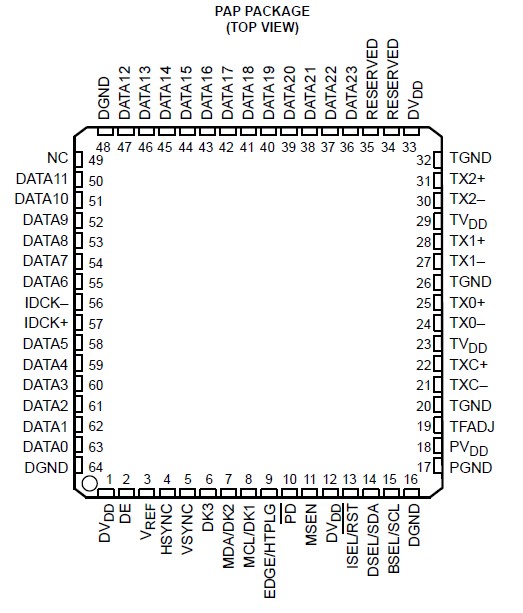

TFP510

Supply voltage range, DVDD, PVDD, TVDD . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 4 V
Input voltage, logic/analog signals . . . . . . . . . . . . . . . . . . . . .. . . . . . . . 0.5 V to 4 V
External DVI single-ended termination resistance, r(T) . . . . . . . . . 0 to open circuit
External TFADJ resistance, r(TFADJ) . . .  . . . . . . . . . . . . . . . . . . 300 to open circuit
Storage temperature range, Tstg . . . . . . . . . . . .. . . . . . . . . . . . . . . 65°C to 150°C
Case temperature for 10 seconds . . . .  . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 260°C
Lead temperature 1,6mm (1/16 inch) from case for 10 seconds . . . .. .. .  . . . . 260°C
ESD protection, DVI pins . . . . . . . . . . . . . . . . . . . .. . . . . . . . 4 kV Human body model
ESD protection, all other pins . . . . . . . .. . . . . . . . . . . . . . . . 2 kV Human body model
JEDEC latchup (EIA/JESD78) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mA

The TFP510 is a Texas Instruments PanelBus flat panel display product, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions, targeted at the PC and consumer electronics industry.

The TFP510 provides a universal interface to allow a glueless connection to most commonly available graphics controllers. Some of the advantages of this universal interface include selectable bus widths, adjustable signal levels, and differential and single-ended clocking. The adjustable 1.1-V to 1.8-V digital interface provides a low-EMI, high-speed bus that connects seamlessly with 12-bit or 24-bit interfaces. The DVI interface supports flat panel display resolutions up to UXGA at 165 MHz in 24-bit true color pixel format.

The TFP510 combines PanelBus circuit innovation with TI's advanced 0.18 m EPIC-5 CMOS process technology and TI's ultralow ground inductance PowerPAD package. The result is a compact 64-pin TQFP package providing a reliable, low-noise, high-speed digital interface solution.
