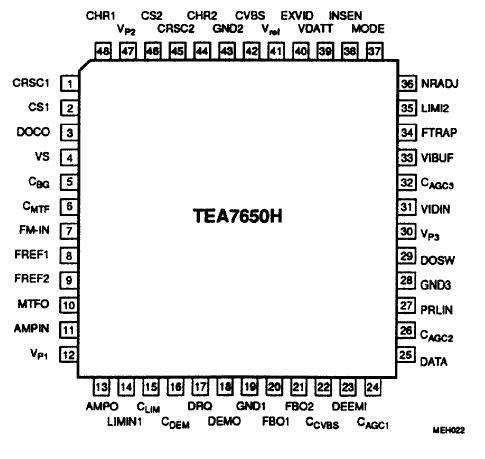

TEA7650H

· Modulation Transfer Function correction (MTF) at signal input for both standards
· HF drop out detector
· Data slicer, data output for program information (IEC standards)
· Separation of signals for Electronic Time Base Correction (ETBC)
· Noise reduction with chrominance trap, noise level adjust point
· Dynamic picture insertion and 6 dB video attenuation of main picture
· Bandgap reference voltage output, suitable for CCD delay line

Bipolar IC TEA7650H for video signal processing used in CD-Video/LaserVision players.

Standard PAL respectively NTSC output signal (CVBS).MTF amplifier.

FM-demodulator followed by de-emphasis stage.

PAL/NTSC switch for switching the MTF and de-emphasis.

Drop out detector with drop out switch, also externally switchable.

+5 volt supply, only 325 mW total power dissipation.
