TEA7089A

Features: .RING- GENERATION OF 8 MELODY TONES (Including the 3 German Melody Tones)- 4 STEPS DIGITAL CONTROL ON THE AM-. PLIFIEROUTPUT LEVEL SPEECH- TRANSMITGAINEXTERNALLYADJUSTABLE- RECEIVINGGAINEXTERNALLYADJUSTABLE- AGCSLOPEEXTERNALLYPROGRAMMABLE- SOFTCLIPPINGON SENDING CHANNEL- RECEIVE AMPLIFIE...

product image

TEA7089A Picture
See larger image
SeekIC No. : 004517413 Detail

TEA7089A: Features: .RING- GENERATION OF 8 MELODY TONES (Including the 3 German Melody Tones)- 4 STEPS DIGITAL CONTROL ON THE AM-. PLIFIEROUTPUT LEVEL SPEECH- TRANSMITGAINEXTERNALLYADJUSTABLE- RECEIVINGGAINEX...

TEA7089A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA7089A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.RING
- GENERATION OF 8 MELODY TONES (Including the 3 German Melody Tones)
- 4 STEPS DIGITAL CONTROL ON THE AM-
. PLIFIEROUTPUT LEVEL SPEECH
- TRANSMITGAINEXTERNALLYADJUSTABLE
- RECEIVINGGAINEXTERNALLYADJUSTABLE
- AGCSLOPEEXTERNALLYPROGRAMMABLE
- SOFTCLIPPINGON SENDING CHANNEL
- RECEIVE AMPLIFIER FOR PIEZO OR ELECTRODYNAMIC TRANSDUCER
- +6dB MODE ON RECEIVE CHANNEL
- LINE POWERMANAGEMENT
. DIALING
- DTMF GENERATOR
- LOW DC MASK DURING MAKE PERIOD THROUGH MICROCONTROLLER SERIAL
. BUS INTERFACE MICROCONTROLLER INTERFACE
- 1.79MHzCLOCKOR3.58MHzOSCILLATOR
. INPUT .MICROCONTROLLER POWER SUPPLY MICROCONTROLLER CONTROL INTER. FACE INCLUDING SERIAL BUS
.  LINE CURRENT EXTRACTOR FOR SUPPLY OF EXTERNAL PERIPHERALS


Pinout

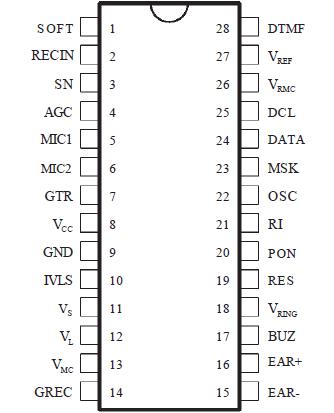

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
Authorized Voltage on
Pin 2 - RECIN
Pin 3 - SN
Pin 8 - VCC
Pin 10 - IVLS
Pin 12 - VL
Pin 13 - VMC
Pin 17 - BUZ
Pin 18 - VRING
Pin 19 - RES
Pin 20 - PON
Pin 21 - RI
Pin 22 - OSC
Pin 23 - MSK
Pin 24 - DATA
Pin 25 - DCL
Pin 26 - VRMC
13
12
11
6
12
6
VRING +0.3, GND -0.3
27
VRMC +0.3, GND -0.3
VRMC +0.3, GND -0.3
VRMC +0.3, GND -0.3
VRMC +0.3, GND -0.3
VRMC +0.3, GND -0.3
VRMC +0.3, GND -0.3
VRMC +0.3, GND -0.3
5
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
ILINE
Line Current
120
mA
IRING
Ring Current
50
mA
Toper
Operating Temperature
-25, +70
°C
Tstg
Storage Temperature
-55, +150
°C
Tj
Junction Temperature
-25, +150
°C



Description

The TEA7089A is a Telephone Analog Front End device, TAFE, which integrates the three basic functions of a standard telephoneset :
- Speech network,
- DTMF generator,
- Ringer generator on buzzer.
A complete telephone set can be designed using
TEA7089A associated with a low cost microcontroller.
