Product Details

Description



Features:

·2/4 WIRES INTERFACE WITH
         - double antisidetone network
         - AC impedance externally programmable
         - Rx output dynamic programmable
         - AGC attack-disconnect points programmable
·ANTI-CLIPPING/ANTI DISTORTION CIRCUIT PROGRAMMABLE
·DTMF INTERFACE
·3.3 VOLTS SUPPLY FOR MICROPROCES SOR OR DIALER
·EXTRA CURRENT SUPPLY PROGRAMMABLE FOR LOUD SPEAKER
·DC CHARACTERISTIC PROGRAMMABLE FOR ALL SPECIFICATION
·LOW CURRENT OPERATION

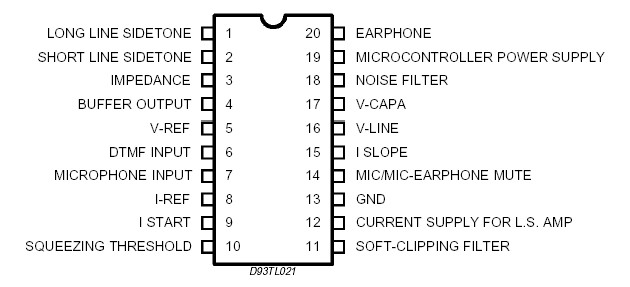

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
  Max. Current DC (steady) 150 mA
  Max. Voltage AC (steady) 7.5 V
  Max. Voltage AC + DC (steady) 9 V
  Max. Current (20ms) ONE SHOT 1 A
  Max. Voltage (20ms) ONE SHOT current < 1A 12 V
Ptot Total Power Dissipation 1 W
TJ Junction Temperature 130



Description

The TEA7063 is designed to meet the differentworldwide specifications for telephone set in medium and high range equipments.
