TEA7532

Features: ·PROGRAMMABLE GAIN IN STEPS OF 6 dB·ON/OFF POSITION·LOWVOLTAGE·POWER : 100mWAT 5 VPinoutSpecifications Symbol Parameter Value Unit Top Temperature Range 5 to + 45 VLS Supply Voltage 6 V ILS Supply Current for T > 300msfor T 300ms 90150 mAmA VL Voltage Leve...

product image

TEA7532 Picture
See larger image
SeekIC No. : 004517416 Detail

TEA7532: Features: ·PROGRAMMABLE GAIN IN STEPS OF 6 dB·ON/OFF POSITION·LOWVOLTAGE·POWER : 100mWAT 5 VPinoutSpecifications Symbol Parameter Value Unit Top Temperature Range 5 to + 45 VLS Su...

TEA7532 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA7532
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·PROGRAMMABLE GAIN IN STEPS OF 6 dB
·ON/OFF POSITION
·LOWVOLTAGE
·POWER : 100mWAT 5 V

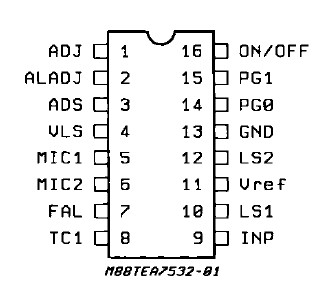

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
Top Temperature Range 5 to + 45
VLS Supply Voltage 6
 V
ILS Supply Current for T > 300ms
for T 300ms		 90
150		 mA
mA
VL Voltage Level (pins, PG0, PG1, on/off) 0.6 > to VS + 0.6 V



Description

This 16 pins IC TEA7532 is designed for monitor (loudspeaker) telephone set and provides :

a) Signal amplification for monitoring (loudspeaker)

b) Antiacoustic feedback (antilarsen)

c) Antidistortion by automatic gain adaptation

d) Antilarsen adjustment (full duplex)
