Features:

Few external components
Fixed gain
Standby and mute mode
No on/off switching plops
Low standby current
High supply voltage ripple rejection
Outputs short-circuit protected to ground, supply and across the load
Thermally protected
Printed-circuit board compatible.

Application

Mains fed applications (e.g. TV sound)
PC audio
Portable audio.

Pinout

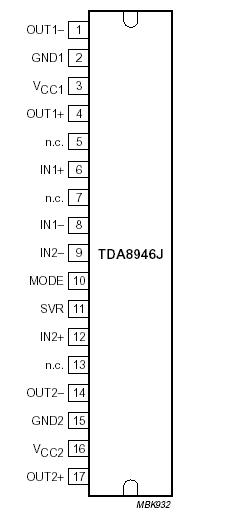

Connection Diagram

Description

The TDA8946J is a dual-channel audio power amplifier with an output power of 2 *15 W at an 8 load and a 18 V supply. The circuit contains two Bridge Tied Load (BTL) amplifiers with an all-NPN output stage and standby/mute logic. The TDA8946J comes in a 17-pin DIL-bent-SIL (DBS) power package. The TDA8946J is printed-circuit board (PCB) compatible with all other types in the TDA894x family. One PCB footprint accommodates both the mono and the stereo products.
