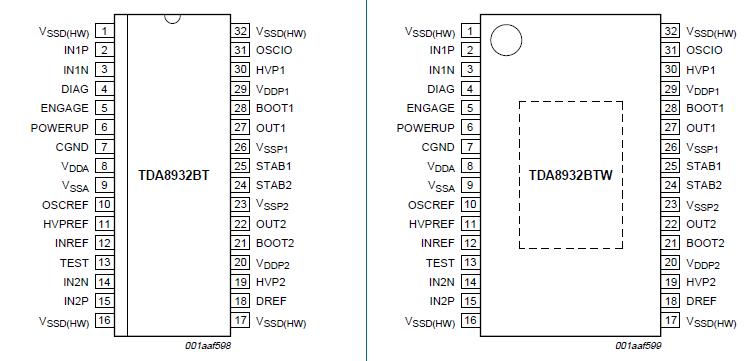

TDA8932B

 Operating voltage from 10 V to 36 V asymmetrical or ±5 V to ±18 V symmetrical
Mono-bridged tied load (full-bridge) or stereo single-ended (half-bridge) application
Application without heatsink using thermally enhanced small outline package
High efficiency and low-power dissipation
Thermally protected and thermal foldback
Current limiting to avoid audio holes
Full short-circuit proof across load and to supply lines (using advanced current protection)
Switchable internal or external oscillator (master-slave setting)
No pop noise
Full-differential inputs

[1] V_P = V_DDP1 - V_SSP1 = V_DDP2 - V_SSP2.
[2] Measured with respect to pin INREF; V_x < V_DD + 0.3 V.
[3] Measured with respect to pin VSSD(HW); V_x < V_DD + 0.3 V.
[4] Measured with respect to pin CGND; V_x < V_DD + 0.3 V.
[5] V_SS = V_SSP1 = V_SSP2; V_DD = V_DDP1 = V_DDP2.
[6] Current limiting concept.
[7] Human Body Model (HBM); R_s = 1500 W; C = 100 pF
         For pins 2, 3, 11, 14 and 15 V_esd = ±1800 V.
[8] Machine Model (MM); R_s = 0 W; C = 200 pF; L = 0.75 mH.

The TDA8932B is a high efficiency class-D amplifier with low power dissipation.

The continuous time output power is 2 ´ 15 W in stereo half-bridge application (R_L = 4 ) or 1 ´ 30 W in mono full-bridge application (R_L = 8 ). Due to the low power dissipation the TDA8932B can be used without any external heat sink when playing music. Due to the implementation of thermal foldback, even for high supply voltages and/or lower load impedances, the device remains operating with considerable music output power without the need for an external heat sink.

The TDA8932B has two full-differential inputs driving two independent outputs. It can be used as mono full-bridge configuration (BTL) or as stereo half-bridge configuration (SE).
