Product Details

Description



Features:

· Operating voltage from ±15 to ±30 V
· Very low quiescent current
· Low distortion
· Fixed gain of 30 dB Single-Ended (SE) or 36 dB Bridge-Tied Load (BTL)
· Good ripple rejection
· Internal switching frequency can be overruled by an external clock
· No switch-on or switch-off plop noise
· Diagnostic input for short-circuit and temperature protection
· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL)
· Start-up safety test, to protect for short-circuits at the output of the power stage to supply lines
· Electrostatic discharge protection (pin to pin).


Application

· Television sets
· Home-sound sets
· Multimedia systems
· All mains fed audio systems
· Car audio (boosters).


Pinout

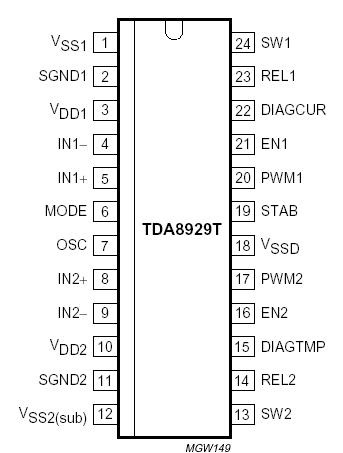

Connection Diagram


Description

The TDA8929T is the controller of a two-chip set for a high efficiency class-D audio power amplifier system. The system is divided into two chips: · TDA8929T; the analog controller chip in a SO24 package   · TDA8926J/ST/TH or TDA8927J/ST/TH; a digital power tage in a DBS17P, RDBS17P or HSOP24 power package.

With this TDA8929T set a compact 2 ×50 W or 2 ×100 W audio amplifier system can be built, operating with high efficiency and very low dissipation. No heatsink is required, or depending on supply voltage and load, a very small one. The system operates over a wide supply voltage range from ±15 up to ±30 V and consumes a very low quiescent current.
