Product Details

Description

Features:

· High efficiency (> 90 %)
· Supply voltage from ±7.5 V to ±30 V
· Very low quiescent current
· High output power
· Diagnostic output
· Usable as a stereo Single-Ended (SE) amplifier
· Electrostatic discharge protection (pin to pin)
· No heatsink required

Application

· Television sets
· Home-sound sets
· Multimedia systems
· All mains fed audio systems

Pinout

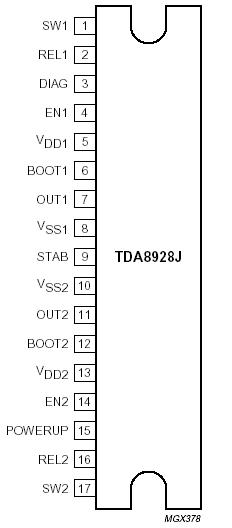

Connection Diagram

Description

The TDA8928J is a switching power stage for a high efficiency class-D audio power amplifier system.

With this power stage a compact 2×10 W self oscillating digital amplifier system can be built, operating with high efficiency and very low dissipation. No heatsink is required. The system of the TDA8928J operates over a wide supply voltage range from ±7.5 V up to ±30 V and consumes a very low quiescent current.
