Product Details

Description

Features:

· High efficiency (>94%)
· Operating voltage from ±15 to ±30 V
· Very low quiescent current
· High output power
· Short-circuit proof across the load, only in combination with controller TDA8929T
· Diagnostic output
· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL)
· Electrostatic discharge protection (pin to pin)
· Thermally protected, only in combination with controller TDA8929T.

Application

· Television sets
· Home-sound sets
· Multimedia systems
· All mains fed audio systems
· Car audio (boosters).

Pinout

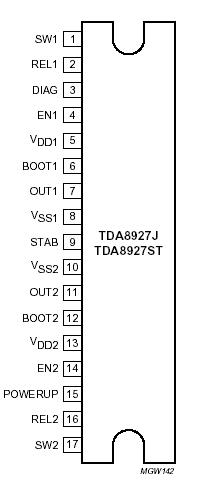

Connection Diagram

Description

The TDA8927 is the switching power stage of a two-chip set for a high efficiency class-D audio power amplifier system. The system is split into two chips: · TDA8927J/ST/TH; a digital power stage in a DBS17P, RDBS17P or HSOP24 power package · TDA8929T; the analog controller chip in a SO24 package.

With this TDA8927 set a compact 2× 80 W audio amplifier system can be built, operating with high efficiency and very low dissipation. No heatsink is required, or depending on supply voltage and load, a very small one. The system operates over a wide supply voltage range from ±15 up to ±30 V and consumes a very low quiescent current.
