Features: · High efficiency (>94%)
· Operating voltage from ±15 to ±30 V
· Very low quiescent current
· High output power
· Short-circuit proof across the load, only in combination with controller TDA8929T
· Diagnostic output
· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL)
· Standby mode
· Electrostatic discharge protection (pin to pin)
· Thermally protected, only in combination with controller TDA8929T.Application· Television sets
· Home-sound sets
· Multimedia systems
· All mains fed audio systems

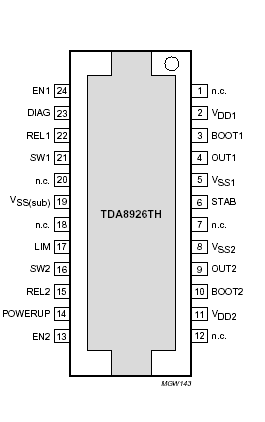

· Car audio (boosters).Pinout
Specifications
|
Symbol |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
Unit |
|
VP |
supply voltage |
|
- |
±30 |
V |
|
VP(sc) |
supply voltage for
short-circuits across the load |
|
- |
±30 |
V |
|
IORM |
repetitive peak current in
output pins |
|
- |
5 |
A |
|
Tstg |
storage temperature |
|
-55 |
150 |
|
|
Tamb |
ambient temperature |
|
-40 |
+85 |
|
|
Tvj |
virtual junction temperature |
|
- |
150 |
|
|
Ves(HBM) |
electrostatic discharge
voltage (HBM) |
note 1
all pins with respect to VDD (class 1a)
all pins with respect to VSS (class 1a)
all pins with respect to each other
(class 1a) |
-1000
-1000
-500 |
+1000
+1000
+500 |
V
V
V |
|
Ves(MM) |
electrostatic discharge
voltage (MM) |
note 2
all pins with respect to VDD (class A1)
all pins with respect to VSS (class B)
all pins with respect to each other
(class A1) |
-150
-200
-100 |
+150
+200
+100 |
V
V
V |
Notes
1. Human Body Model (HBM); R
s = 1500; C = 100 pF.
2. Machine Model (MM); R
s = 10 ; C = 200 pF; L = 0.75H.
DescriptionThe TDA8926TH is the switching power stage of a two-chip set for a high efficiency class-D audio power amplifier system.With this chip set a compact 2 ´ 50 W audio amplifier system can be built, operating with high efficiency and very low dissipation. No heatsink is required, or depending on supply voltage and load, a very small one. The system operates over a wide supply voltage range from±15 up to ±30 V and consumes a very low quiescent current.
The TDA8926TH has many unique features: The first one is high efficiency (>94%).The second one is operating voltage from ±15 to ±30 V.The third one is very low quiescent current.The forth one is high output power.The fifth one is diagnostic output.The sixth one is usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL).The seventh one is standby mode.The eighth one is electrostatic discharge protection (pin to pin),etc.
There are some limiting values about the TDA8926TH.storage temperature(Tstg) is -55°C +150°C.Ambient temperature(Tj) is -40°C to 85°C.supply voltage(VP) is ±30 V max.supply voltage for short-circuits across the load(VP(sc)) is ±30 V max.repetitive peak current in output pins(IORM) is 5 A max.virtual junction temperature(Tvj) is 150 °C max.thermal resistance from junction to ambient in free air(Rth(j-a))is 40 K/W.thermal resistance from junction to case in free air(Rth(j-c)) is 1 K/W.
Well,if you are interested in the TDA8926TH and want to know more,please pay more attention to our web for you will find more information about it. Thanks for your attention!
The TDA8926TH is the switching power stage of a two-chip set for a high efficiency class-D audio power amplifier system. The system is split into two chips:
` TDA8926TH: a digital power stage in a HSOP24 power package
` TDA8929T: the analog controller chip in a SO24 package.
With this TDA8926TH set a compact 2 * 50 W audio amplifier system can be built, operating with high efficiency and very low dissipation. No heatsink is required, or depending on supply voltage and load, a very small one. The system operates over a wide supply voltage range from ±15 up to ±30 V and consumes a very low quiescent current.
TDA8926TH Data Sheet
