Features: · High efficiency (>94%)· Operating voltage from ±15 to ±30 V· Very low quiescent current· High output power· Short-circuit proof across the load, only in combination with controller TDA8929T· Diagnostic output· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in ...

product image

TDA8926 Picture
See larger image
SeekIC No. : 004516871 Detail

TDA8926: Features: · High efficiency (>94%)· Operating voltage from ±15 to ±30 V· Very low quiescent current· High output power· Short-circuit proof across the load, only in combination with controller TD...

TDA8926 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8926
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High efficiency (>94%)
· Operating voltage from ±15 to ±30 V
· Very low quiescent current
· High output power
· Short-circuit proof across the load, only in combination with controller TDA8929T
· Diagnostic output
· Usable as a stereo Single-Ended (SE) amplifier or as a mono amplifier in Bridge-Tied Load (BTL)
· Electrostatic discharge protection (pin to pin)
· Thermally protected, only in combination with controller TDA8929T.




Application

· Television sets
· Home-sound sets
· Multimedia systems
· All mains fed audio systems
· Car audio (boosters).




Pinout

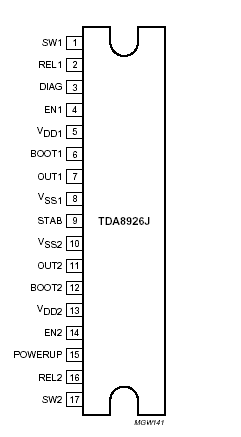

Connection Diagram




Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
 supply voltage
-
±30
V
VP(sc)
 supply voltage for
short-circuits across the load
-
±30
V
IORM
 repetitive peak current in
output pins
-
5
A
Tstg
 storage temperature
-55
+150
Tamb
 ambient temperature
-40
+85
Tvj
 virtual junction temperature
-
150
Ve(HBM)
 electrostatic discharge
voltage (HBM)		 note 1
all pins with respect to VDD (class 1a)
all pins with respect to VSS (class 1a)
all pins with respect to each other
(class 1a)
-500
-1500
-1500
+500
+1500
+1500
V
V
V
Ves(MM)
 electrostatic discharge
voltage (MM)		 note 2
all pins with respect to VDD (class B)
all pins with respect to VSS (class B)
all pins with respect to each other
(class B)
-250
-250
-250
+250
+250
+250
V
V
V
Notes
1. Human Body Model (HBM); Rs = 1500 ; C = 100 pF.
2. Machine Model (MM); Rs = 10 ; C = 200 pF; L = 0.75 mH.




Description

The TDA8926 is the switching power stage of a two-chip set for a high efficiency class-D audio power amplifier system. The system is split into two chips:

· TDA8926J: a digital power stage in a DBS17P power package
· TDA8929T: the analog controller chip in a SO24 package.

With this chip set a compact 2×50 W audio amplifier system can be built, operating with high efficiency and very low dissipation. No heatsink is required, or depending on supply voltage and load, a very small one. The systemoperates over a wide supply voltage range from ±15 up to ±30 V and consumes a very low quiescent current.
